Installation - Ignition Switch

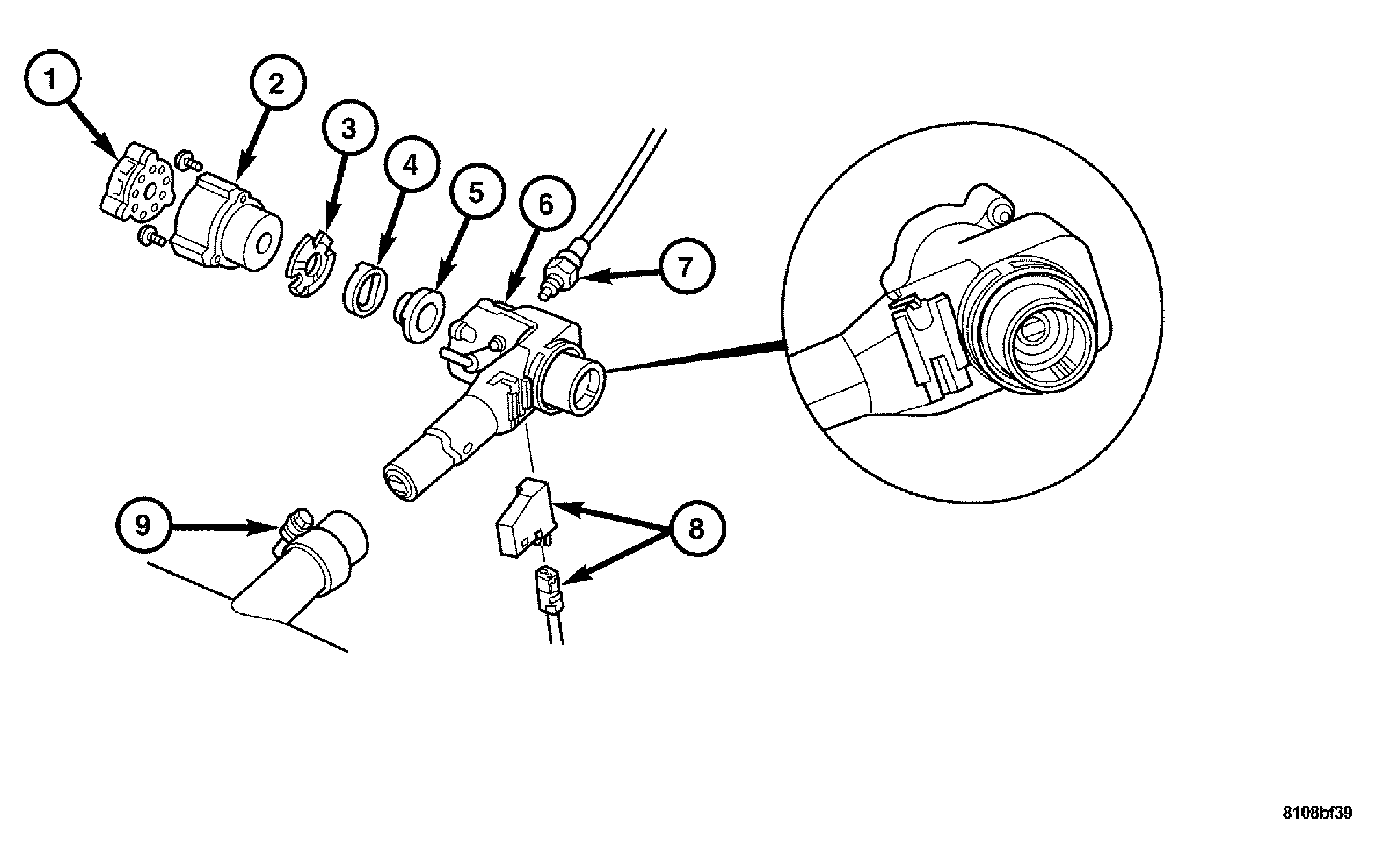

| 1 - IGNITION SWITCH CONNECTOR |
| 2 - IGNITION SWITCH |
| 3 - WASHER |
| 4 - PARKING LOCK VALVE |
| 5 - CAM |
| 6 - STEERING LOCK |
| 7 - PARK/BRAKE INTERLOCK CABLE |
| 8 - BUZZER |
| 9 - LOCKING PIN |
| 10 - RELEASE CLAMP |
CAUTION:
The steering lock and lock cylinder can only be fitted in lock cylinder position "1". Never turn the steering lock when the ignition/starter switch is not fitted.
- Install the washer (3) and the parking lock valve (4).NOTE: The ignition switch must not be turned out of position "1" when the ignition/starter switch is not fitted, otherwise the steering lock is locked permanently.
- Install the ignition switch (2).
- Install the connector from the ignition/starter switch (1).
- Install the clamp (9), press in locking pin to install the steering lock (6) to the steering column.
- Install the warning buzzer contact switch (8).
- Install the parking lock interlock cable (7).
- Install the connector from the warning buzzer contact (10).
- Install the key cylinder. See INSTALLATION .
- Install the transponder coil.
- Install the lower instrument panel cover. Refer to REMOVAL .
