Ash Receiver Lamp Connector End View

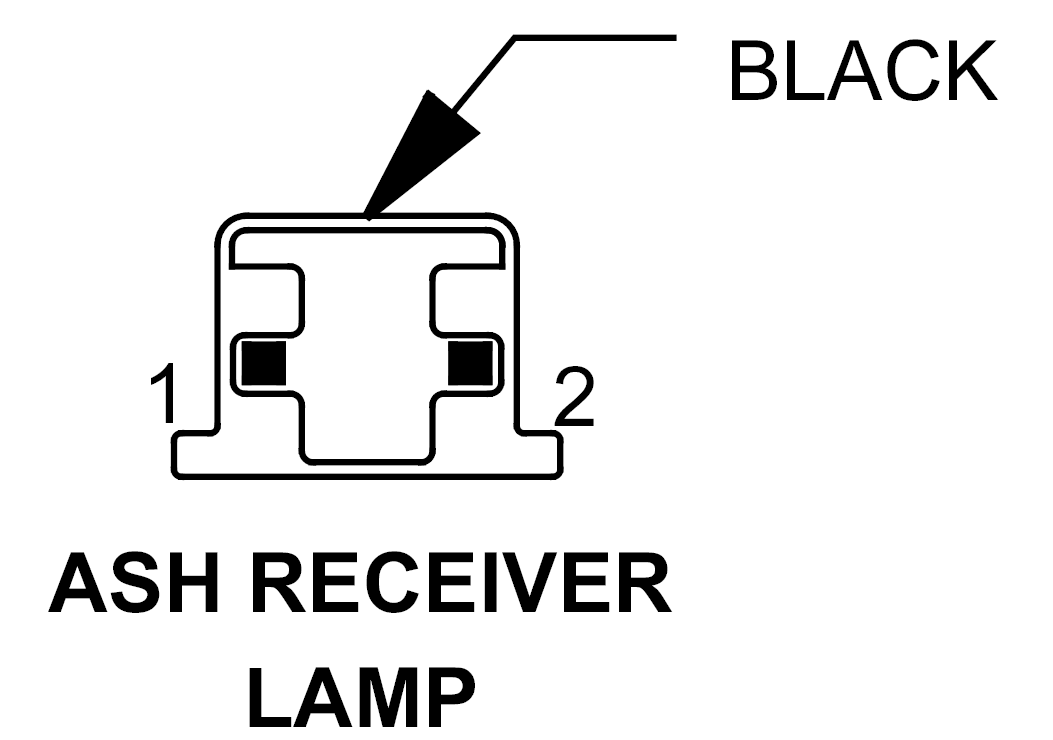

ASH RECEIVER LAMP - BLACK 2-WAY

GZH780014Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR GROUND
2 18GY FUSED ILLUMINATION CONTROL MODULE OUTPUT
2 18GY FUSED ILLUMINATION CONTROL MODULE OUTPUT
