Radio D (Navigation) Connector End View

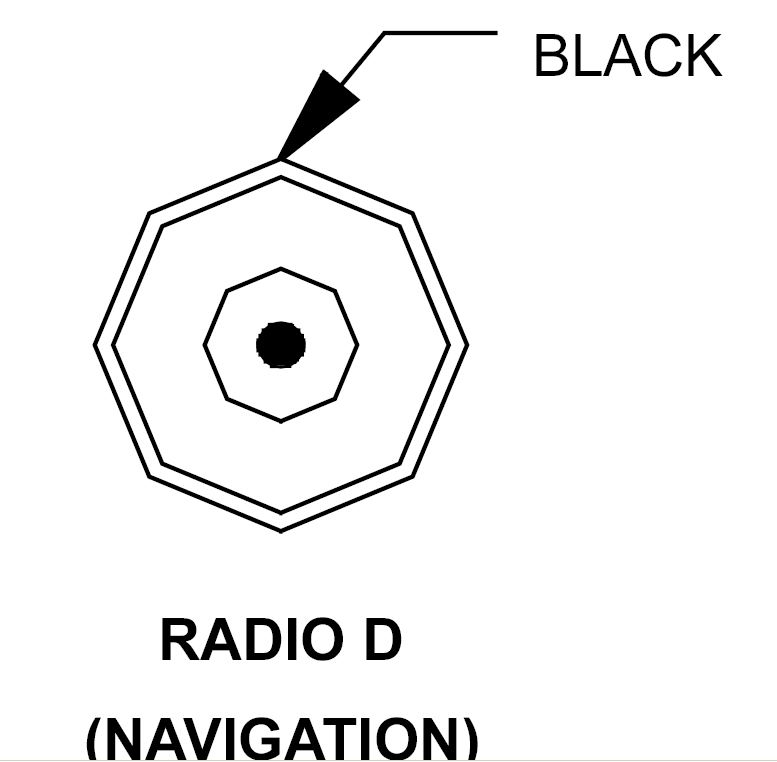

RADIO D - BLACK 2-WAY (NAVIGATION)

GZH780202Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 24BK ANTENNA
2 BK SHIELD
