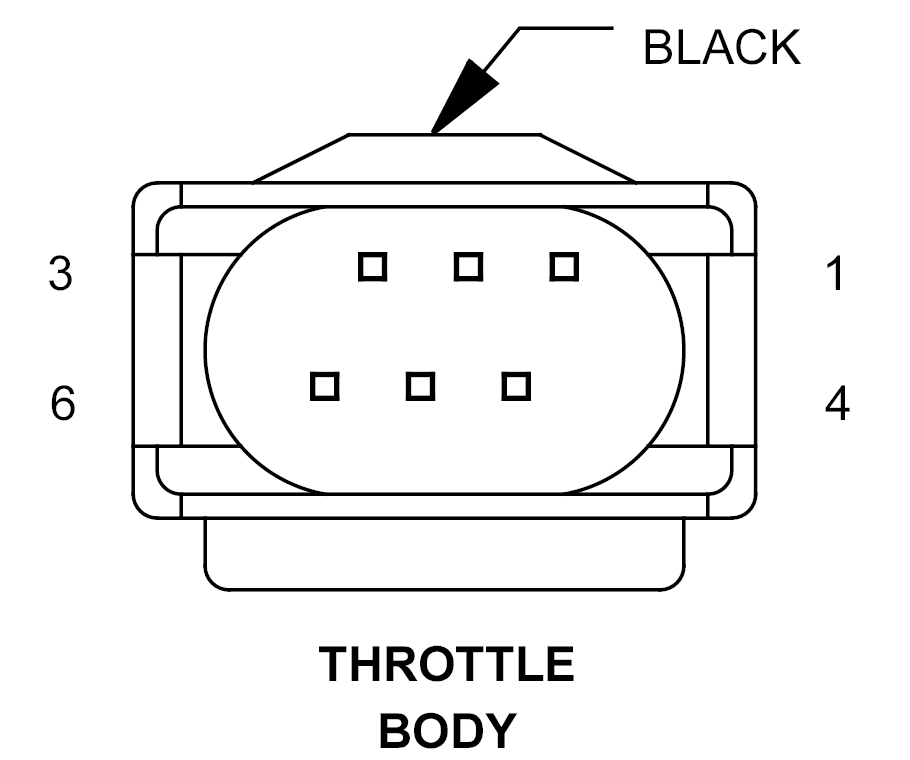

Throttle Body Connector End View
THROTTLE BODY - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BL |
THROTTLE CONTROL MOTOR 1 |
| 2 |
20VT |
5 VOLT SUPPLY |
| 3 |
20GY |
SENSOR GROUND |
| 4 |
18BK |
THROTTLE CONTROL MOTOR 2 |
| 5 |
20WT |
THROTTLE POSITION SENSOR SIGNAL 2 |
| 6 |
20YL |
THROTTLE POSITION SENSOR SIGNAL 1 |
