P2513-Enhanced Accident Report Driver: Notes

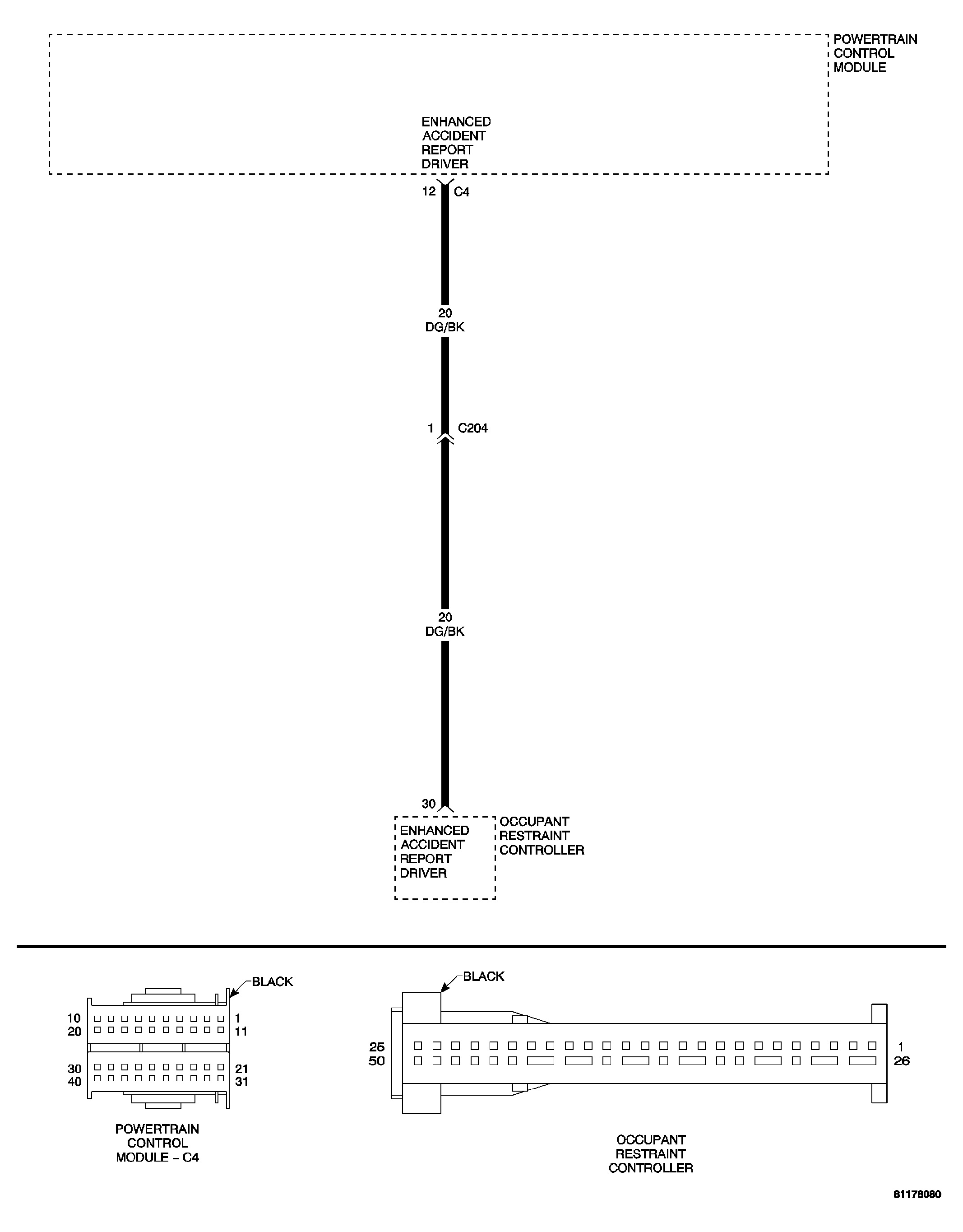

Fig 1: Enhanced Accident Report Driver Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: Ignition on.
2. Set Condition: The Occupant Restraint Controller (ORC) periodically sends out a signal to the Powertrain Control Module (PCM). If the PCM does not receive the signal from the ORC, the PCM will set this DTC.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
