Piston And Connecting Rod

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

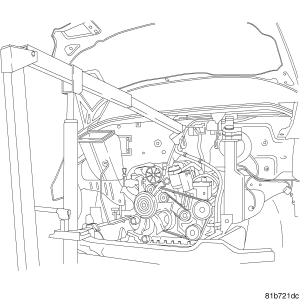

Fig 1: Engine Lift
GC0066184Courtesy of CHRYSLER LLC
  1. Remove the engine from the vehicle. See REMOVAL .

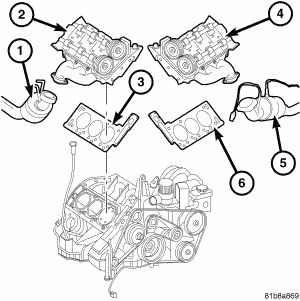

    Fig 2: Cylinder Head Components
    GC0066189Courtesy of CHRYSLER LLC
  2. Remove the left cylinder head. See INSTALLATION .
  3. Remove the right cylinder head. See REMOVAL .
    Fig 3: Lower Oil Pan
    GC0066243Courtesy of CHRYSLER LLC
  4. Remove the lower oil pan. See REMOVAL .

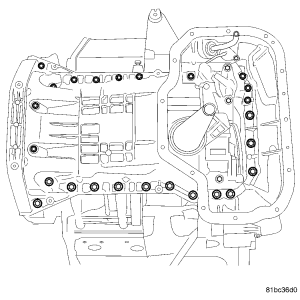

    Fig 4: Upper Oil Pan Bolts
    GC0066231Courtesy of CHRYSLER LLC
  5. Remove the upper oil pan. See REMOVAL .
  6. Remove top ridge of cylinder bores with a reliable ridge reamer before removing pistons from cylinder block. Be sure to keep tops of pistons covered during this operation. Pistons and connecting rods must be removed from top of cylinder block. When removing piston and connecting rod assemblies from the engine, rotate crankshaft so that each connecting rod is centered in cylinder bore.
    Fig 5: Piston And Connecting Rod Components
    GC0066225Courtesy of CHRYSLER LLC
  7. Remove the connecting rod bolts (7).
  8. Remove the piston (3) and connecting rods (2) from the cylinder bores.
  9. Inspect connecting rods and connecting rod caps (9) for cylinder identification. Identify them with a paint mark if necessary.
  10. Remove connecting rod cap. Install protectors on connecting rod. Push each piston and rod assembly out of cylinder bore.
NOTE: Be careful not to nick crankshaft journals.
