Engine Assembly

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

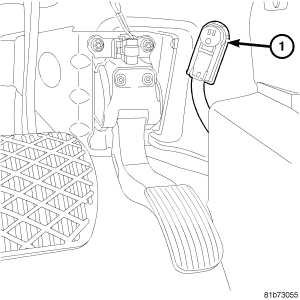

Fig 1: Remote Ground
GC0066161Courtesy of CHRYSLER LLC
  1. Disconnect the battery ground.
    Fig 2: Hood Opened
    GC0066162Courtesy of CHRYSLER LLC
  2. Open the hood.

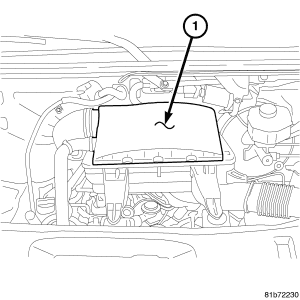

    Fig 3: Intake Air Housing
    GC0066163Courtesy of CHRYSLER LLC
  3. Remove the air filter housing.
    Fig 4: Grille Bolts
    GC0066164Courtesy of CHRYSLER LLC
  4. Remove the grill assembly.
    Fig 5: Headlamp Trim Panel
    GC0066165Courtesy of CHRYSLER LLC
  5. Remove the head lamp trim panel screws.
  6. Remove the head lamp trim panel.
  7. Partially raise the vehicle
    Fig 6: Front Plate Holder
    GC0066166Courtesy of CHRYSLER LLC
  8. Remove the license plate holder and step grip plate.
  9. Remove the front fascia assembly.
    Fig 7: Lower Shroud
    GC0066167Courtesy of CHRYSLER LLC
  10. Drain the coolant.
  11. Remove the lower sound shield.
  12. Drain the coolant.
  13. Lower the vehicle.
    Fig 8: AC Compressor And PS Pump
    GC0066168Courtesy of CHRYSLER LLC
  14. Drain the power steering fluid from the power steering fluid reservoir.
  15. Disconnect the power steering fluid lines.
  16. Disconnect the A/C pressure sensor.
  17. Remove the condenser line bolt.
  18. Remove the condenser lines.
    Fig 9: Transmission Cooler Lines
    GC0066169Courtesy of CHRYSLER LLC
  19. Remove the transmission cooler lines from the radiator.

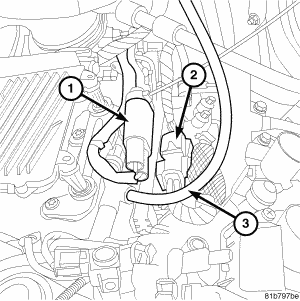

    Fig 10: Heater Hose Lines And Extension Line
    GC0066170Courtesy of CHRYSLER LLC
  20. Remove the heater hose lines from the extension line.
    Fig 11: Radiator Support Location
    GC0066171Courtesy of CHRYSLER LLC
  21. Remove the upper radiator hose.
  22. Remove the lower radiator hose.
  23. Mark the radiator support location on the frame.

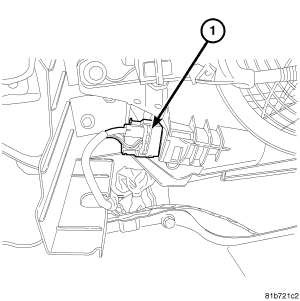

    Fig 12: Electric Fan Connector
    GC0066172Courtesy of CHRYSLER LLC
  24. Disconnect the electric fan connector.

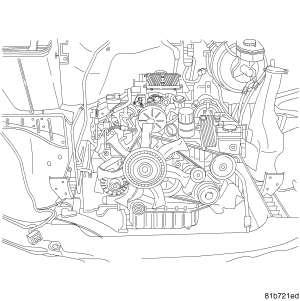

    Fig 13: Cooling Module Assembly
    GC0066160Courtesy of CHRYSLER LLC
  25. Remove the cooling module assembly.
    Fig 14: Heater Hose Lines And Extension Line
    GC0066170Courtesy of CHRYSLER LLC
  26. Disconnect the canister purge lines and position aside.
  27. Disconnect the fuel lines.
  28. Disconnect the fuel lines at the fuel rail.

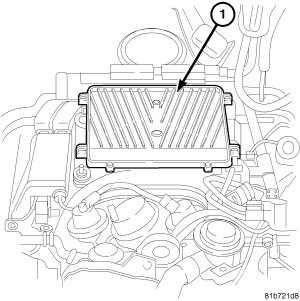

    Fig 15: PCM
    GC0066173Courtesy of CHRYSLER LLC
  29. Disconnect the PCM connectors.
  30. Remove the PCM.
    Fig 16: Transmission Dipstick Bolts
    GC0066174Courtesy of CHRYSLER LLC
  31. Remove the transmission dip stick (2) bolts.

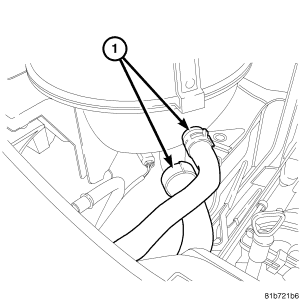

    Fig 17: Coolant Hose Clamps
    GC0066175Courtesy of CHRYSLER LLC
  32. Disconnect the engine ground strap.
  33. Disconnect the coolant level sensor.
  34. Raise the vehicle on the hoist.
    Fig 18: Torque Converter Bolts
    GC0066176Courtesy of CHRYSLER LLC
  35. Remove the torque converter bolts.
    Fig 19: O2 Sensor Connector
    GC0066177Courtesy of CHRYSLER LLC
  36. Disconnect the oxygen sensor connectors at the connector bracket.
    Fig 20: Right Side Catalytic Converter Bolts And Exhaust Manifold
    GC0066178Courtesy of CHRYSLER LLC
  37. Remove the bolts from the right exhaust flange.
  38. Remove the bolts from the left exhaust flange.

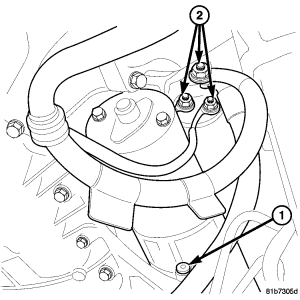

    Fig 21: Starter Bolts
    GC0066179Courtesy of CHRYSLER LLC
  39. Disconnect the B+ wire from the starter.
  40. Remove the starter bolts.
  41. Remove the starter.
    Fig 22: Generator
    GC0066180Courtesy of CHRYSLER LLC
  42. Disconnect the generator electrical connector.
    Fig 23: Bell Housing And Bolts
    GC0066181Courtesy of CHRYSLER LLC
  43. Remove the bell housing bolts.
    NOTE: Leave one bell housing bolt in for safety. Leave a bolt that can be easily reached from the top of the engine.
    Fig 24: Left Motor Mount
    GC0066182Courtesy of CHRYSLER LLC
  44. Remove the left motor mount (2) bolt.
    Fig 25: Right Motor Mount Lower
    GC0066183Courtesy of CHRYSLER LLC
  45. Remove the right motor mount bolt.
  46. Lower the hoist.
  47. Support the transmission with a floor jack.
    Fig 26: Engine Lift
    GC0066184Courtesy of CHRYSLER LLC
  48. Install the engine lift.
  49. Remove the last bell housing bolt.
  50. Remove the engine from the vehicle.
