DTC 900A: Right Low Beam Control Circuit High: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

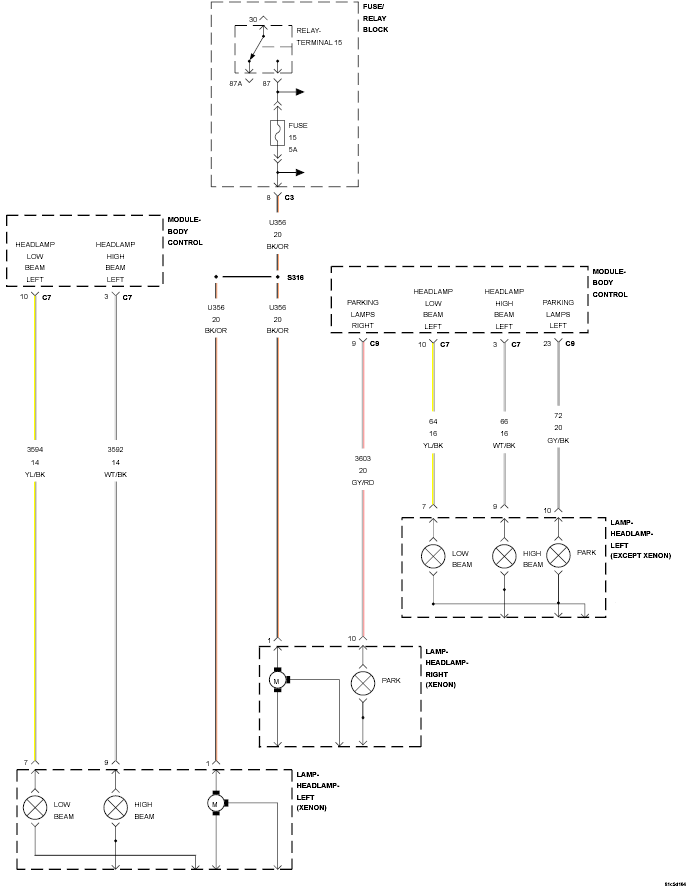

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the Headlamps activated.
- Set Condition:
When the BCM detects a HIGH condition.
| Possible Causes |
|---|
| RIGHT LOW BEAM CONTROL CIRCUIT SHORTED TO GROUND |
| RIGHT LOW BEAM BULB |
| BODY CONTROL MODULE |
