DTC 900C: Left High Beam Control Circuit Low: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

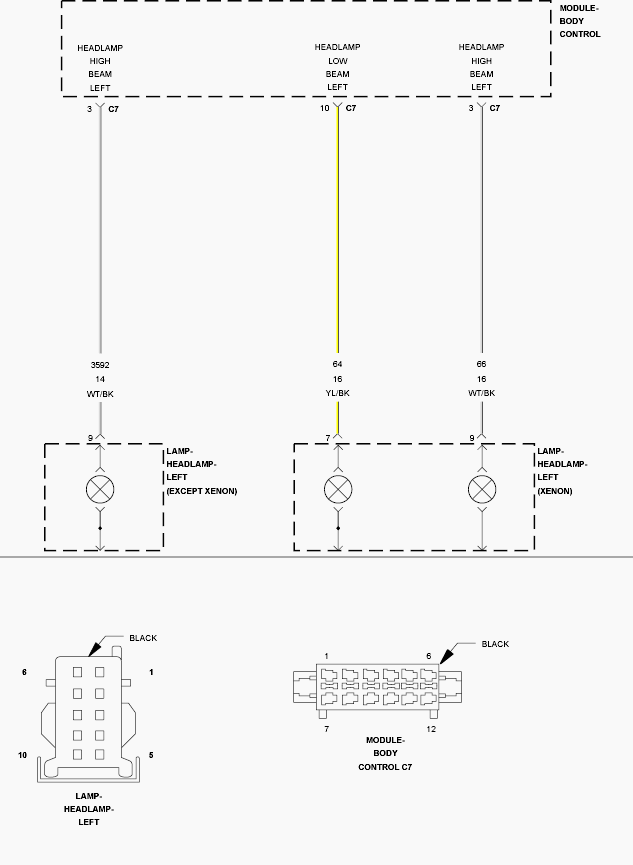

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the Headlamps activated.
- Set Condition:
When the BCM detects a LOW condition.
| Possible Causes |
|---|
| LEFT HIGH BEAM OUTPUT CIRCUIT |
| BODY CONTROL MODULE |
