Module-Radiator Fan Control: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

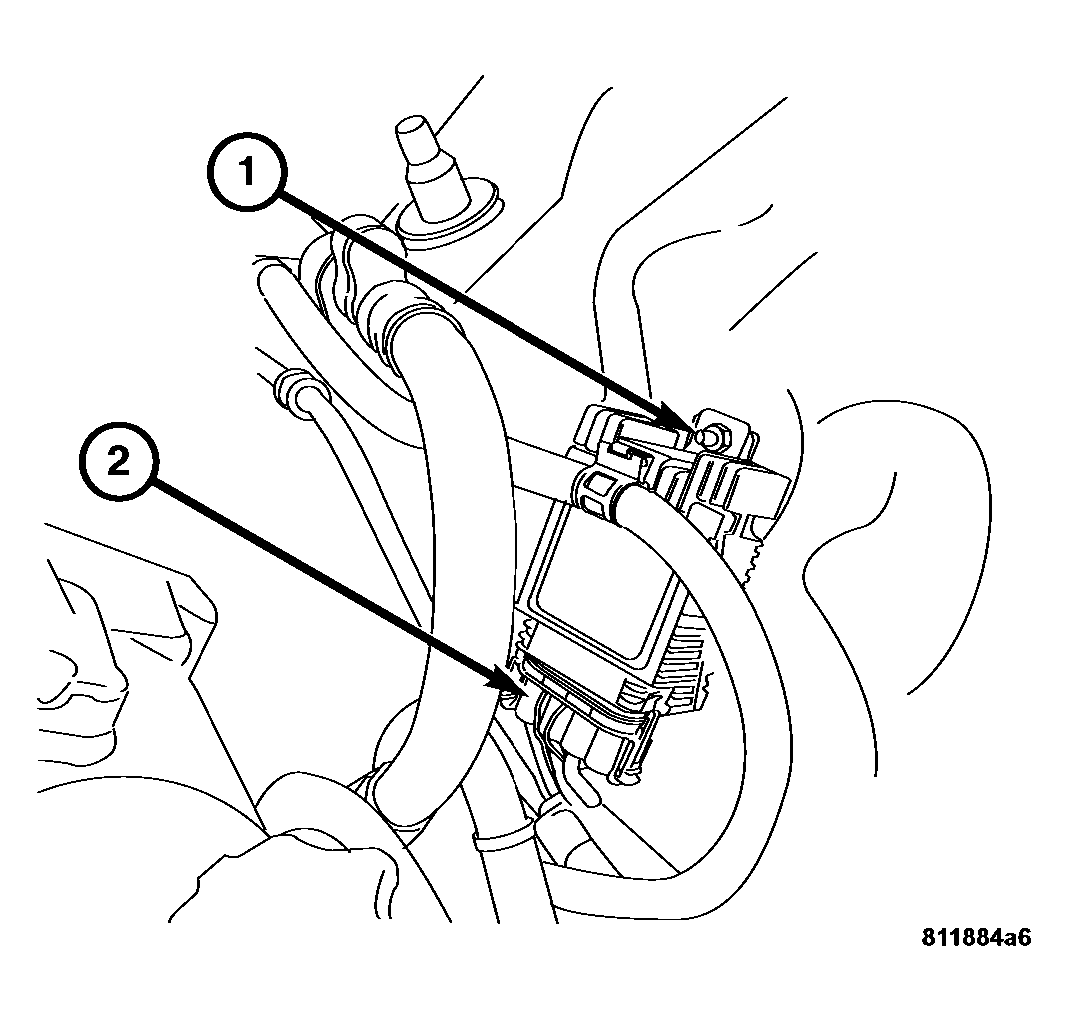

Fig 1: Identifying Cooling Fan Module & Radiator Fan Control Module Harness Connector
GC0033981Courtesy of CHRYSLER LLC
  1. Position the radiator fan control module on the inner fender well studs.
  2. Install the upper and lower retaining nuts. Tighten the nuts to 10 N.m (89 in. lbs.).
  3. Connect the radiator fan control module harness connector.
  4. Connect the negative battery cable.
