MODULE, Door: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

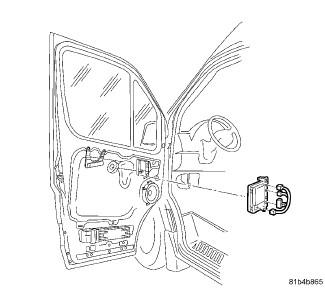

Fig 1: Door Control Module
GC0133886Courtesy of CHRYSLER LLC
  1. Install the door control module.
  2. Connect the electrical connectors.
  3. Install the door trim panel. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
  4. Connect the battery negative cable.
