Crankshaft Position Sensor: Diagrams

Component ID: 66
Component : CRANKSHAFT POSITION SENSOR

Connector:
Name : CRANKSHAFT POSITION SENSOR
Color : NATURAL
# of pins : 2




Pin Description Circuit
1 CRANKSHAFT POSITION SENSOR SIGNAL 2 20DG
2 CRANKSHAFT POSITION SENSOR SIGNAL 1 20DG/WT

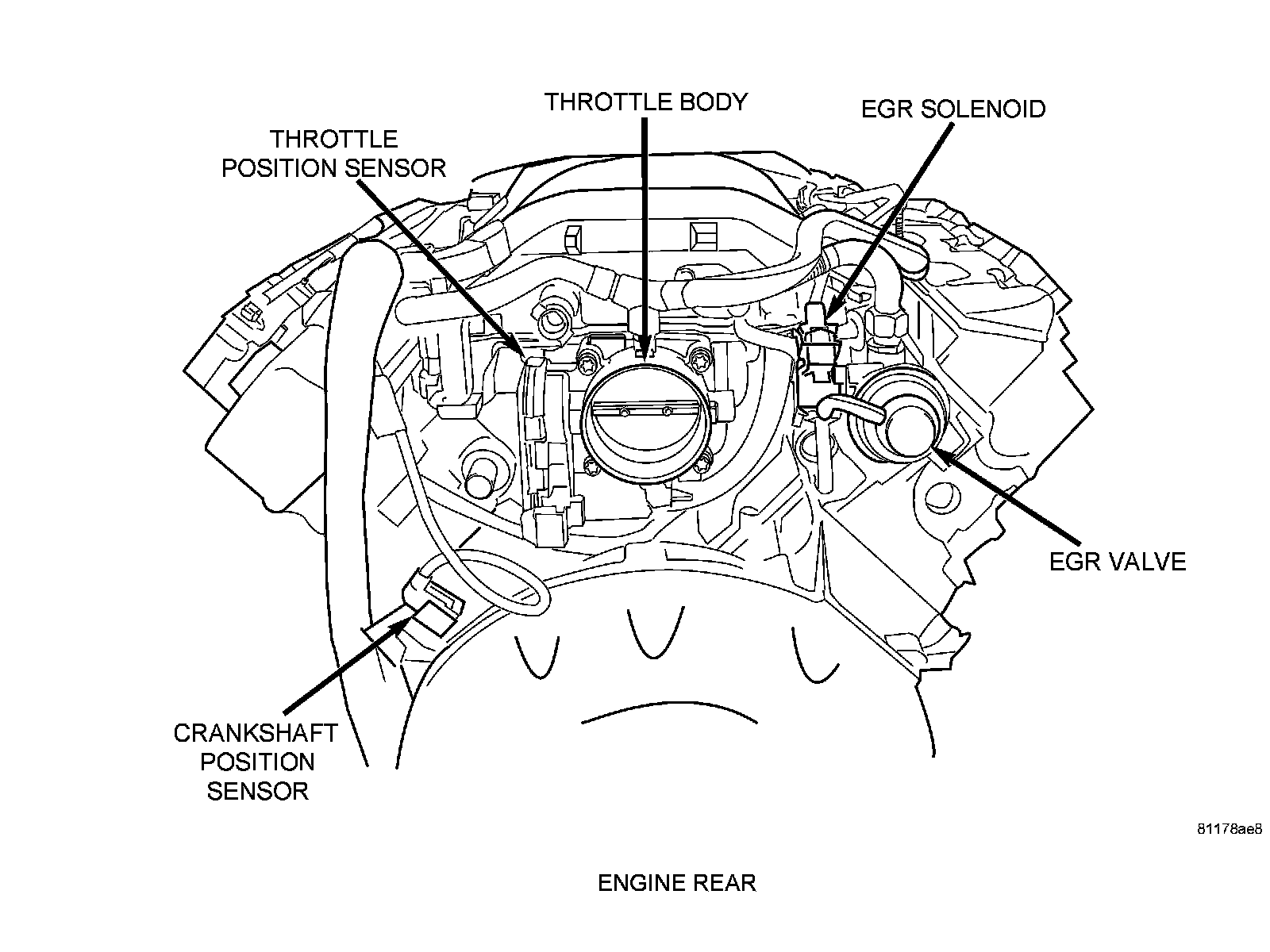

Component Location - 9

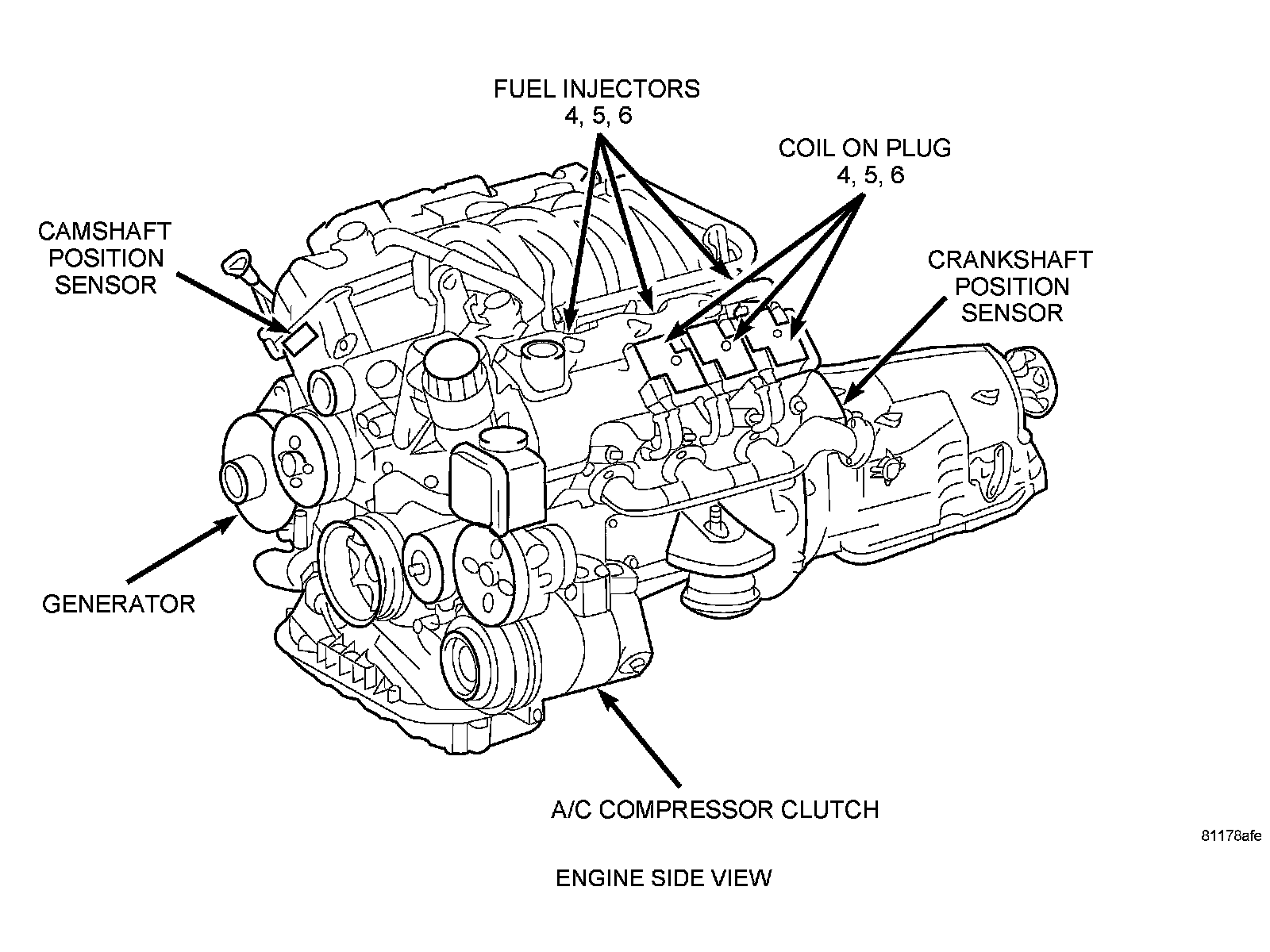

Component Location - 7
