Removal
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.
3. Disconnect the crankshaft position sensor harness connector.

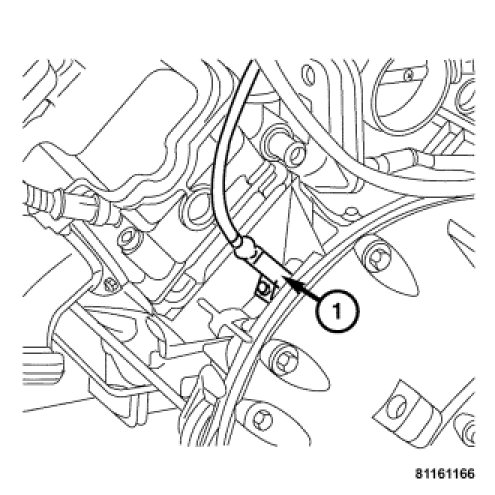

4. Remove the retaining bolt and the crankshaft position sensor (1).
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.
3. Disconnect the crankshaft position sensor harness connector.
4. Remove the retaining bolt and the crankshaft position sensor (1).
