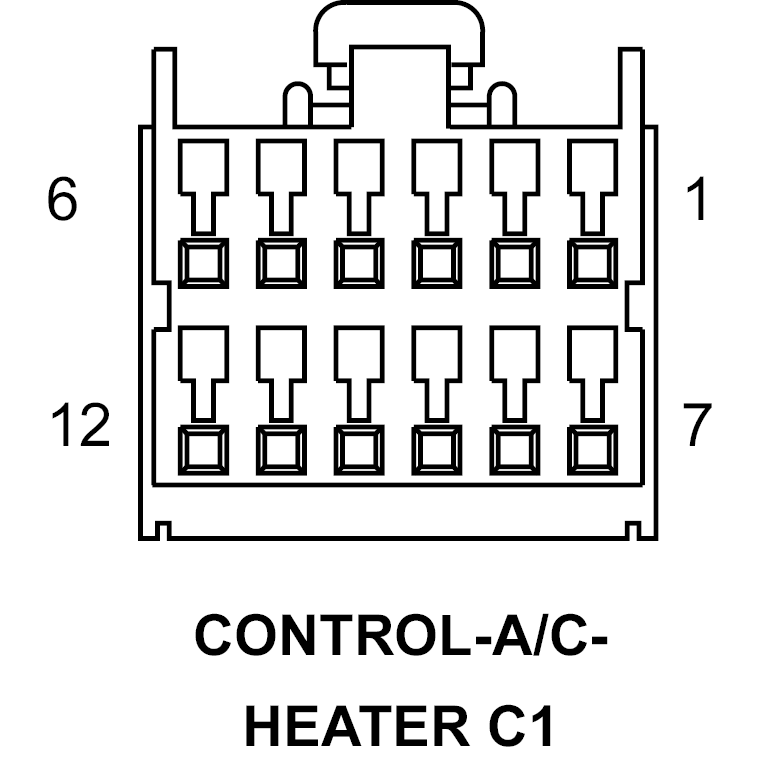

A/C Heater Control Connector End View (C1)

CONTROL-A/C-HEATER C1 - 12-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F929 14PK/YL	FUSED IGNITION SWITCH OUTPUT (RUN)
2	E12 14OR/GY	PANEL LAMPS DRIVER
3	C132 22DB/YL	RECIRCULATION DOOR DRIVER (B)
4	C32 22DB/TN	RECIRCULATION DOOR DRIVER (A)
5	C4 20LB/YL	INDICATOR DRIVER
6	-	-
7	Z906 20BK	GROUND
8	-	-
9	C955 20LB	HVAC MUX RETURN
10	-	-
11	C105 20LB/LG	HVAC MUX CONTROL
12	-	-
