PT Cruiser Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0340 To P050B
>>
P0461-Fuel Level Sensor 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

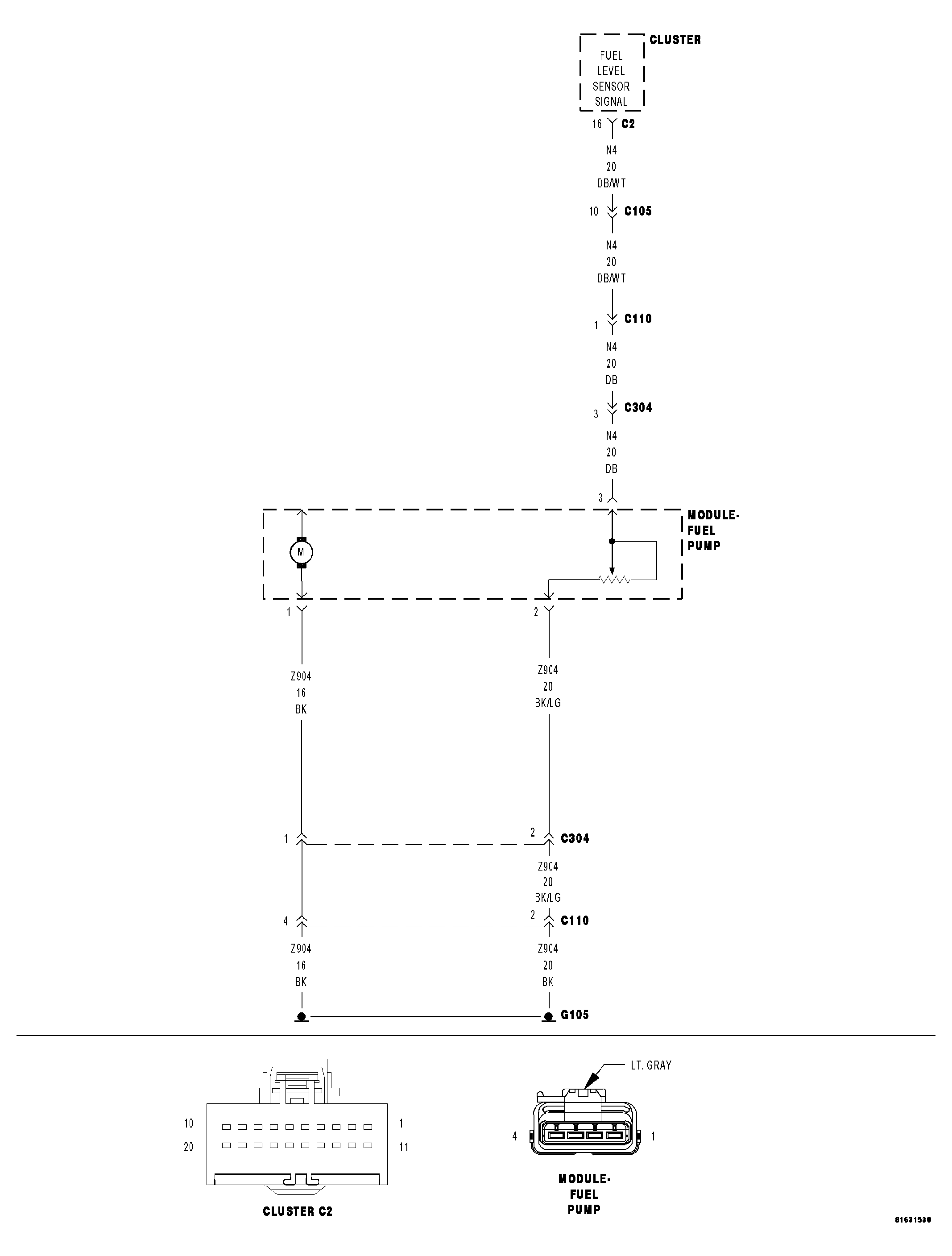

Fig 1: Fuel Pump Module Circuit Schematic
Courtesy of CHRYSLER LLC
