Vehicle Lead/Pull

Use the following chart for diagnosis. See Fig 1.

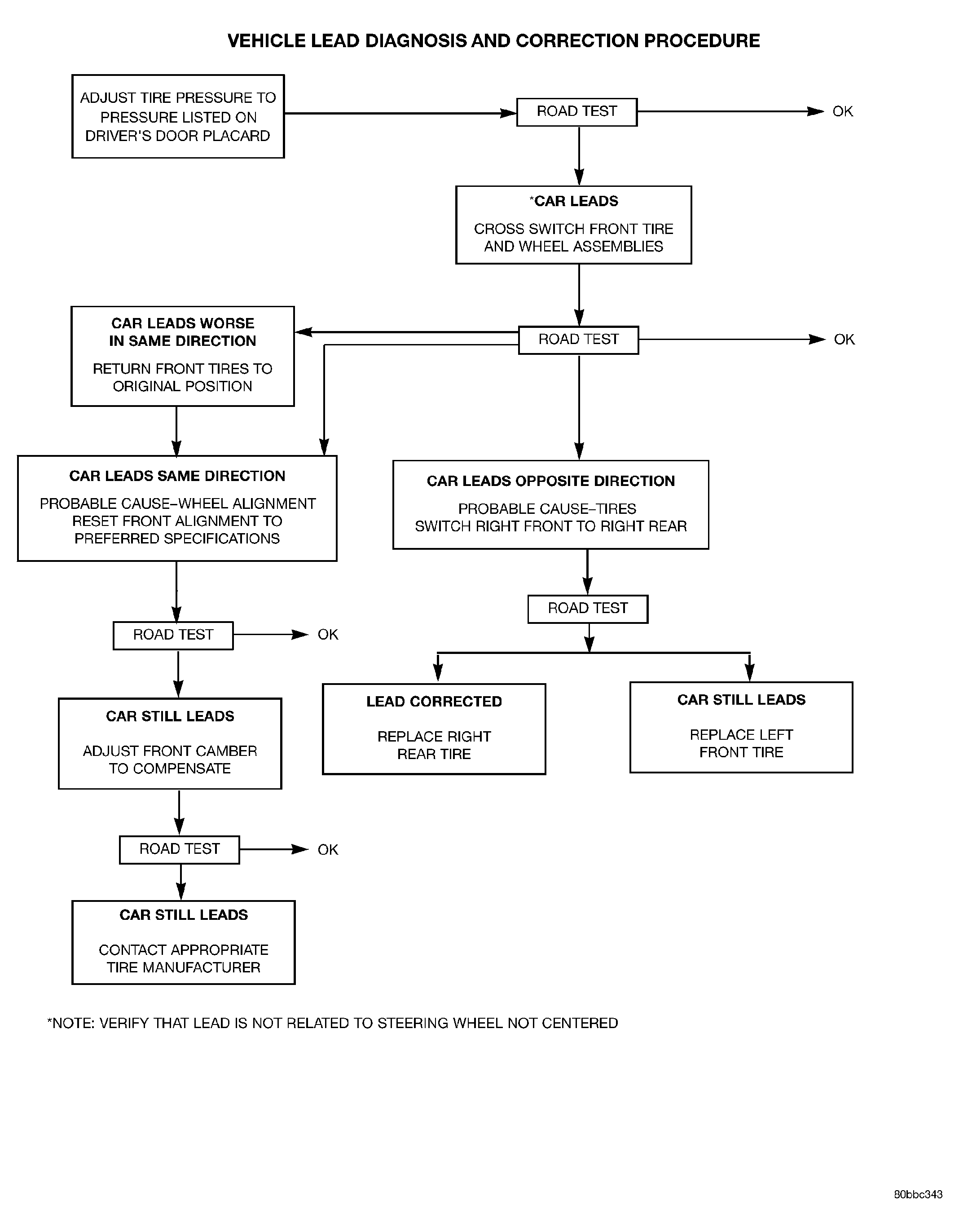

Fig 1: Vehicle Lead Diagnosis & Correction Procedure
GC0019587Courtesy of CHRYSLER LLC
