Modular Clutch Assembly

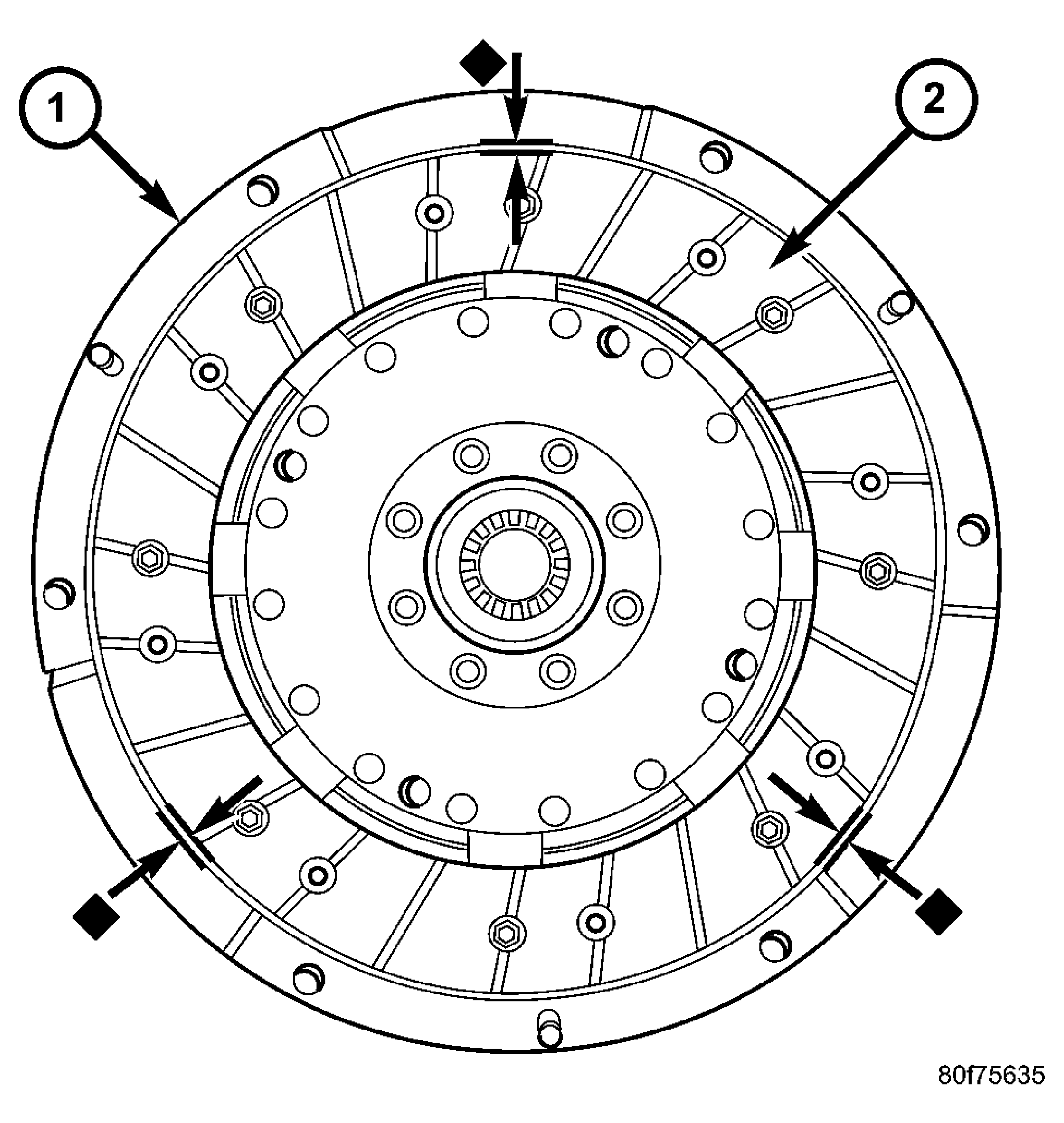

Fig 1: Clutch Disc - To - Flywheel Orientation

Courtesy of CHRYSLER LLC

1 - FLYWHEEL

2 - CLUTCH DISC

← - EQUAL DISTANCE FOR ALIGNMENT

WARNING: DaimlerChrysler does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris

2.4L Turbo models: Install clutch disc (2) to flywheel (1) with "Flywheel Side" oriented towards flywheel (1). Align clutch disc (2) to flywheel (1) by ensuring equal distance between disc and flywheel lip exists in three places as shown. Install pressure plate to flywheel, locating on dowels and making sure not to disturb clutch disc. Install and torque six pressure plate-to-flywheel bolts to 28 N.m (250 in. lbs.). Visually verify clutch disc alignment. See Fig 1.
All models: Install clutch module onto input shaft.
Install transaxle into vehicle. Refer to INSTALLATION .
