Master Cylinder-RHD: Description: Cylinder-Master-RHD
| 1 - RESERVOIR |

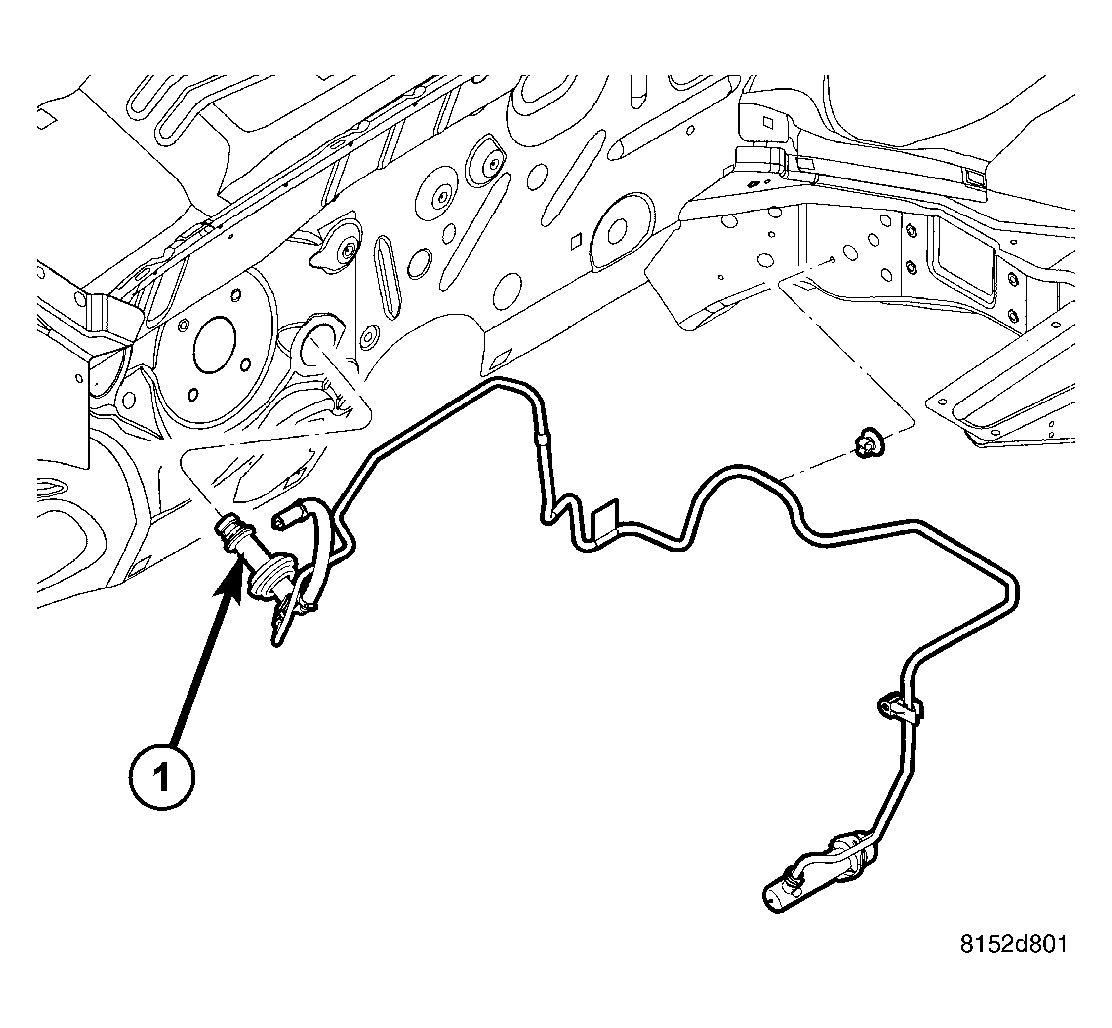

The clutch master cylinder (1) mounts to the dash panel and consists of a piston and cylinder housing, an actuating push rod and an interconnecting hydraulic tube. Fluid is supplied to the clutch master cylinder via the brake master cylinder reservoir. See Fig 1.
