P2111-Electronic Throttle Control System - Unable To Close - 3.8L
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

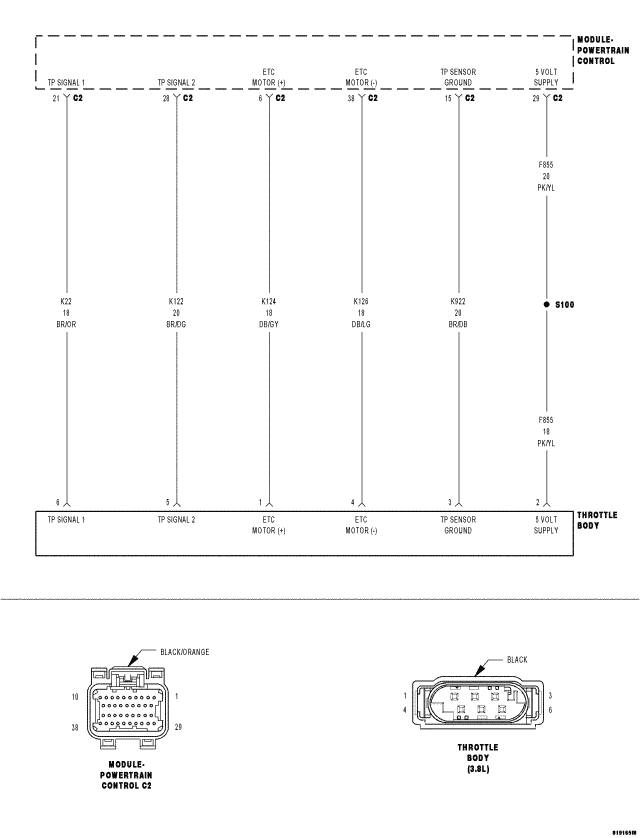

Fig 1: Throttle Body Circuit Schematic -- 3.8L
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
