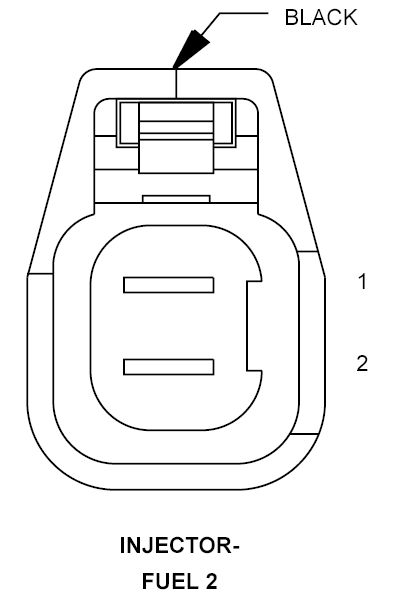

Fuel Injector 2 Connector End View
INJECTOR-FUEL 2 - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K344 16BR/GY |
ASD RELAY OUTPUT (3.8L) |
| 1 |
F343 16PK/BR |
ASD RELAY OUTPUT (4.0L) |
| 2 |
K12 16BR/DB |
INJECTOR 2 CONTROL |
