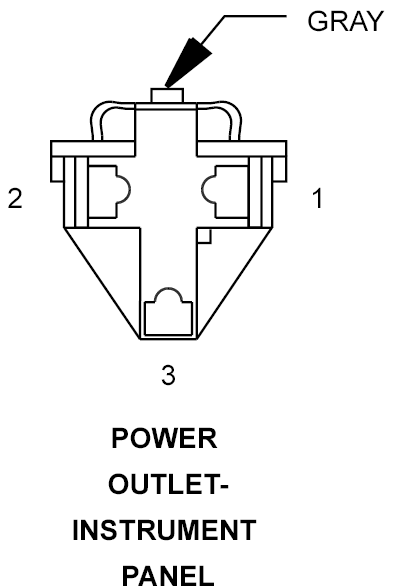

Power Instrument Panel Outlet Connector End View
POWER OUTLET-INSTRUMENT PANEL - GRAY 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A105 18DB/RD |
FUSED B(+) |
| 2 |
- |
- |
| 3 |
Z738 16BK/WT |
GROUND |
