System Diagram

Component ID: 184
Component : MODULE-FUEL PUMP

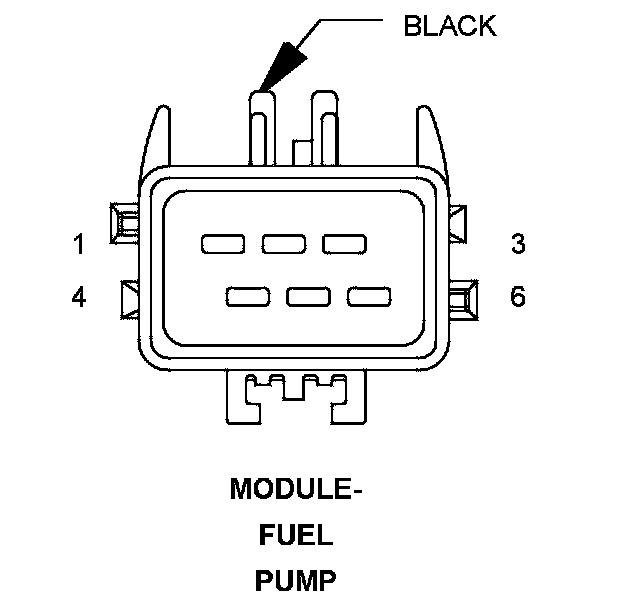

Connector:
Name : MODULE-FUEL PUMP
Color : BLACK
# of pins : 6

Pin Description Circuit
1 FUEL PUMP RELAY OUTPUT N1 16DB/OR
2 FUEL LEVEL SIGNAL 1 N4 20DB/YL
3 FUEL LEVEL SIGNAL 2 N5 20DB/WT
4 - -
5 GROUND Z210 20BK/LB
6 GROUND Z201 16BK

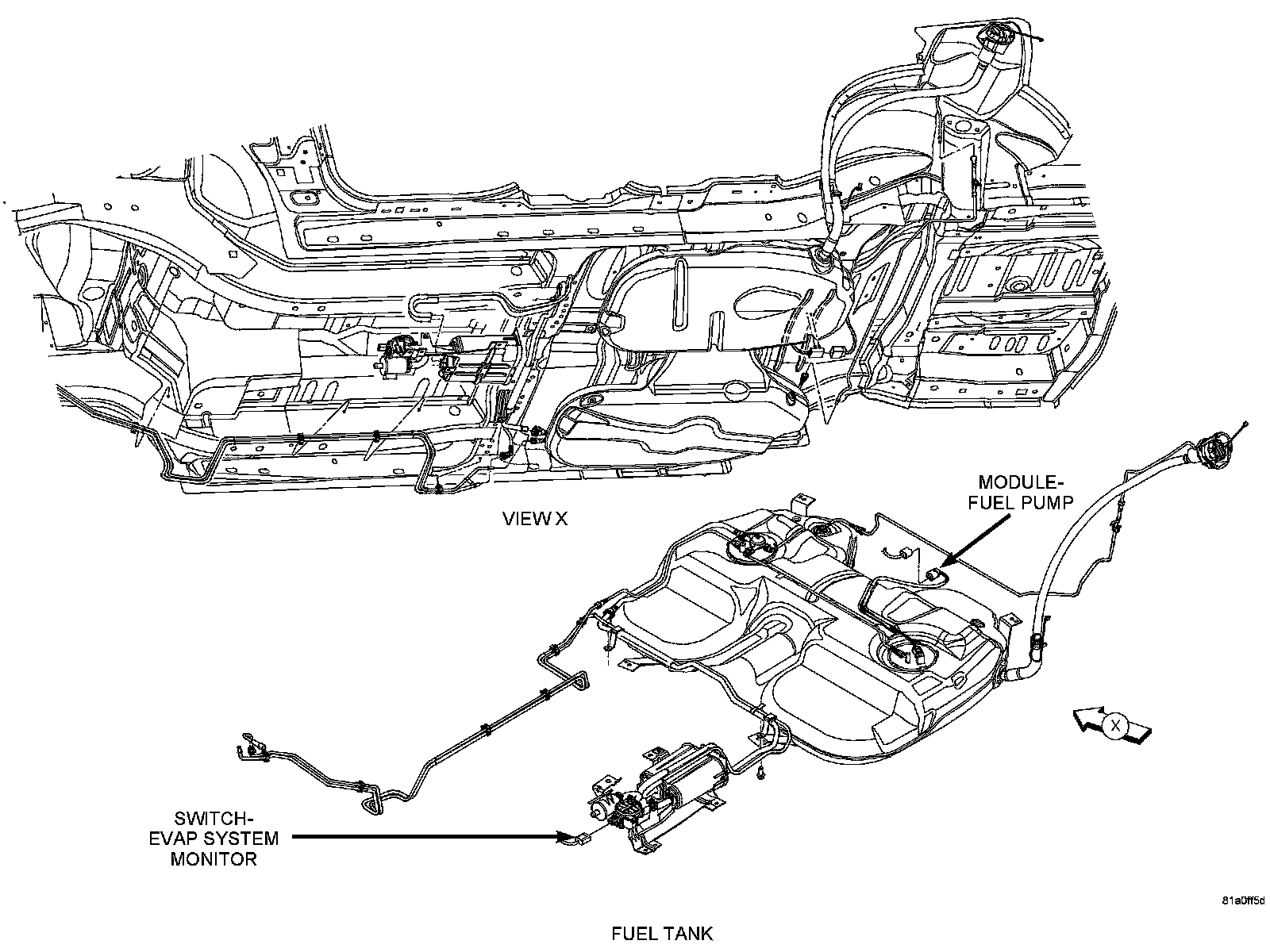

Component Location - 30

Component Location - 36
