Installation

3.8L

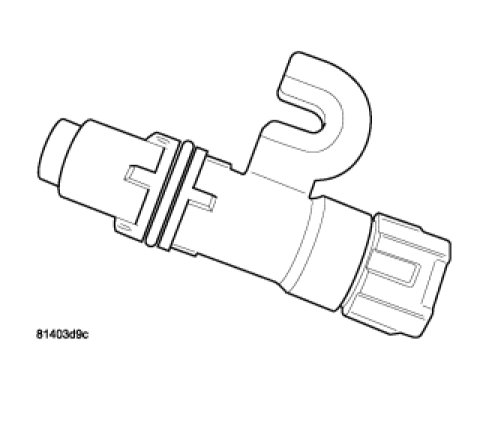

1. Camshaft Position Sensor.




2. Install camshaft position sensor.

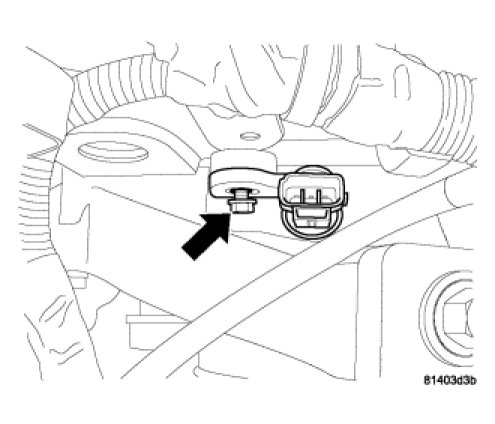

3. Tighten the mounting bolt to 14 Nm (125 in. lbs.).

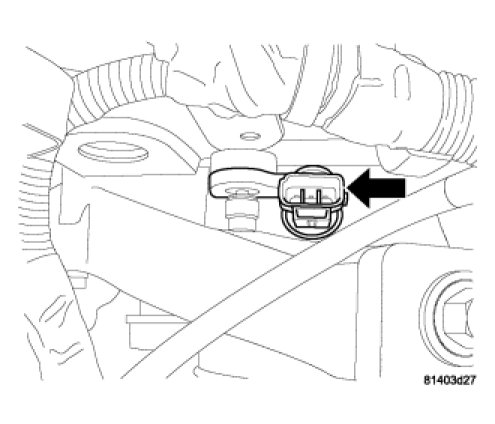

4. Install and lock the camshaft sensor electrical connector.

5. Connect the negative battery cable.
