Installation

3.8L

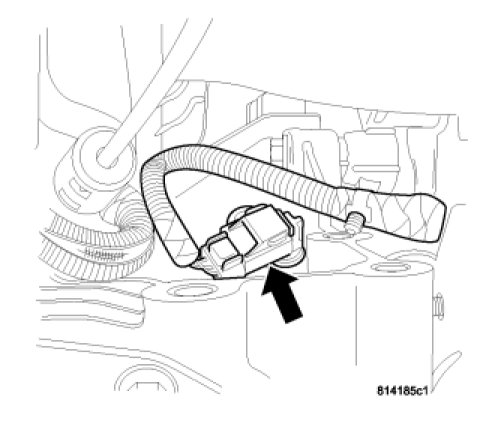

1. Install sensor and push sensor down until contact is made with the transmission case. While holding the sensor in this position, install and tighten the retaining bolt to 12 Nm (105 in. lbs.) torque.

2. Connect electrical connector and lock to crankshaft position sensor.

3. Install battery.

4. Connect the positive then the negative battery cable.
