Manifold Pressure/Vacuum Sensor: Locations

Component ID: 365
Component : SENSOR-MAP

Connector:
Name : SENSOR-MAP
Color : GRAY
# of pins : 3
Qualifier : (3.8L)




Pin Description Circuit
1 MAP SIGNAL K1 20VT/BR
2 SENSOR GROUND K900 20DB/DG
3 5 VOLT SUPPLY F856 20YL/PK

Component Location - 10




Component Location - 12






Connector:
Name : SENSOR-MAP
Color : BLACK
# of pins : 3
Qualifier : (4.0L)




Pin Description Circuit
1 MAP SIGNAL K1 20VT/BR
2 SENSOR GROUND K900 20DB/DG
3 5 VOLT SUPPLY F856 20YL/PK

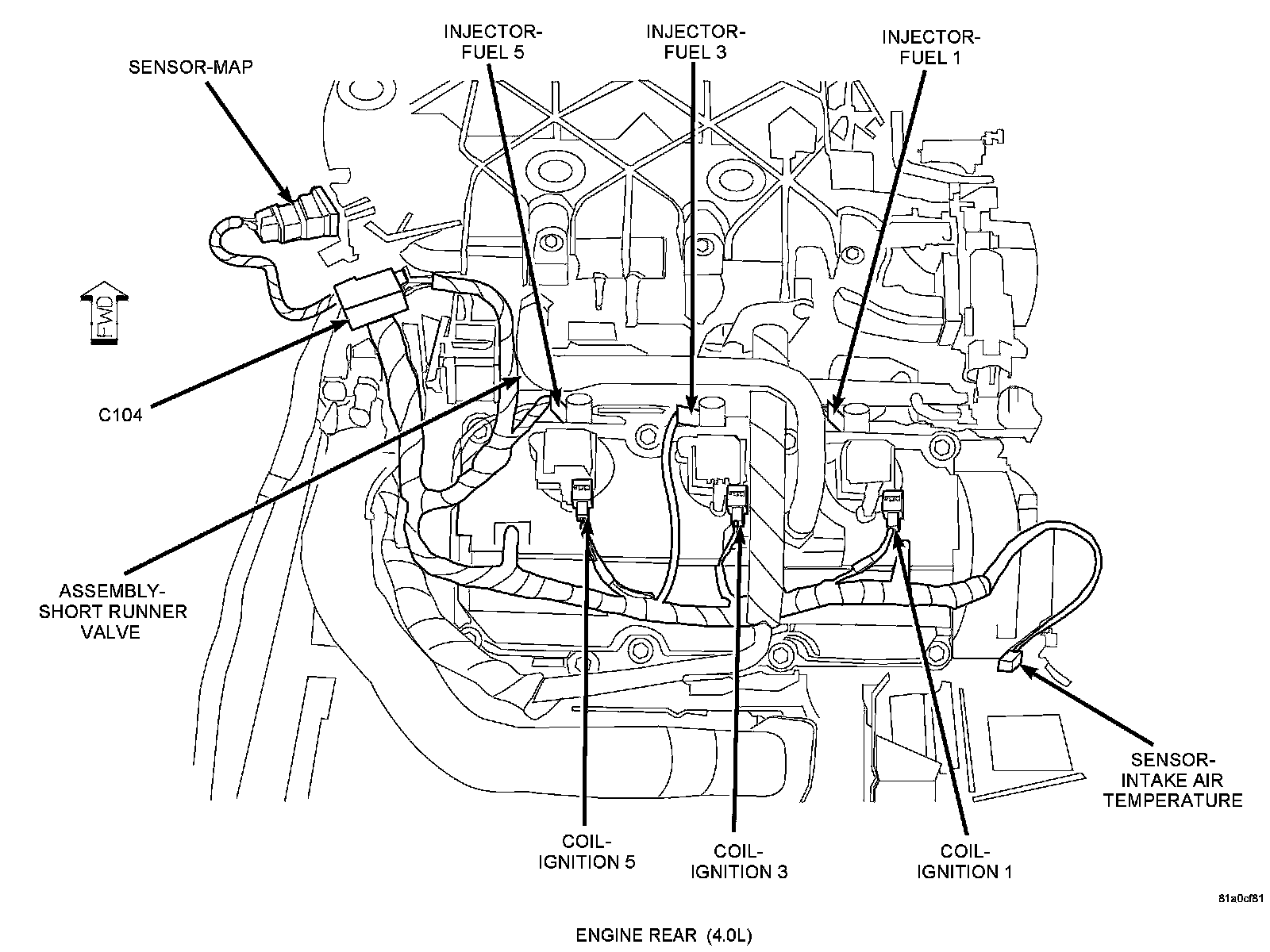

Component Location - 10




Component Location - 12
