Installation

3.8L





When servicing components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY to aid assembly.

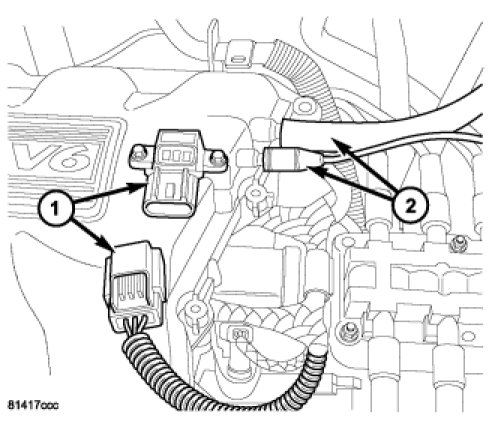

1. Install MAP sensor.

2. Install and tighten screws.

3. Connect and lock electrical connector.

4. Connect negative battery cable.
