3.8L - Upper O2 Sensor

3.8L - UPPER O2 SENSOR





The engines uses two heated oxygen sensors.

CAUTION: When disconnecting the sensor electrical connector, do not pull directly on wire going into sensor.

1. Disconnect negative battery cable.

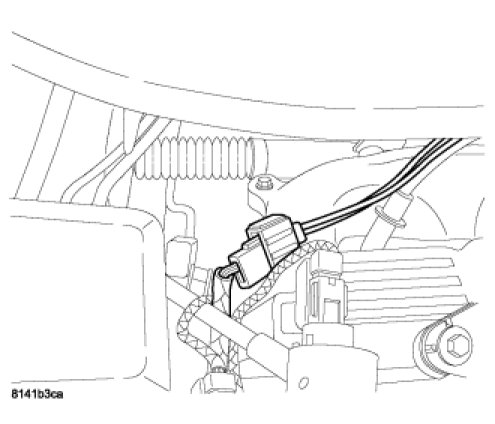

2. Disconnect the upper O2 sensor connector.

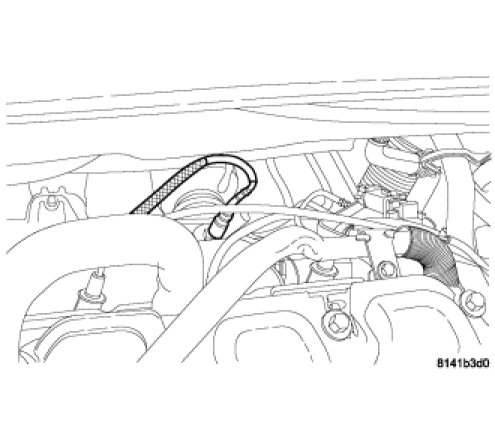

3. Use a socket such as Snap-On YA8875 or a crow foot wrench to remove oxygen sensor.
