Installation

3.8L

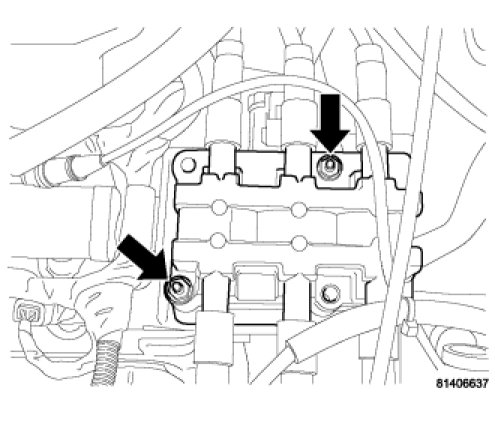

1. Install ignition coil over mounting studs

2. Connect and lock the electrical connector to ignition coil.

3. Install mounting nuts and tighten to Nm 11.5 ( 105 in. lbs.).

4. Install ignition cables to coil assembly.

5. Connect negative battery cable.
