Removal

REMOVAL




1. Remove door trim panel. Refer to Trim Panel.

2. Remove watershield. Refer to Front Door Panel.

3. Remove inner belt molding.

4. Remove door glass.

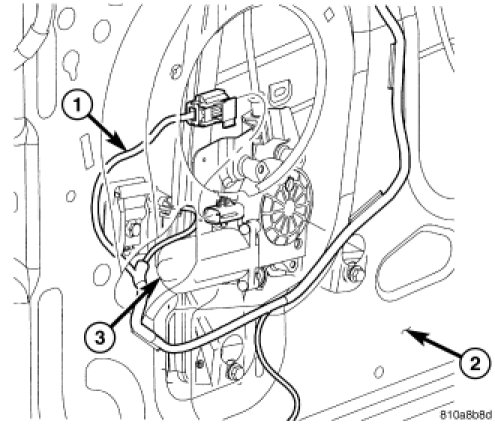

5. Disconnect wire connector from power window motor.

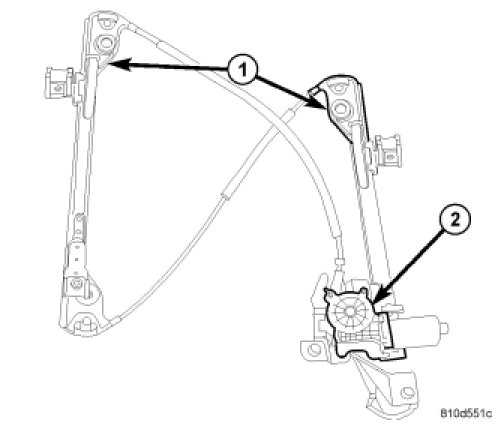

6. Loosen screws attaching front and rear window guide rails to inner door panel.

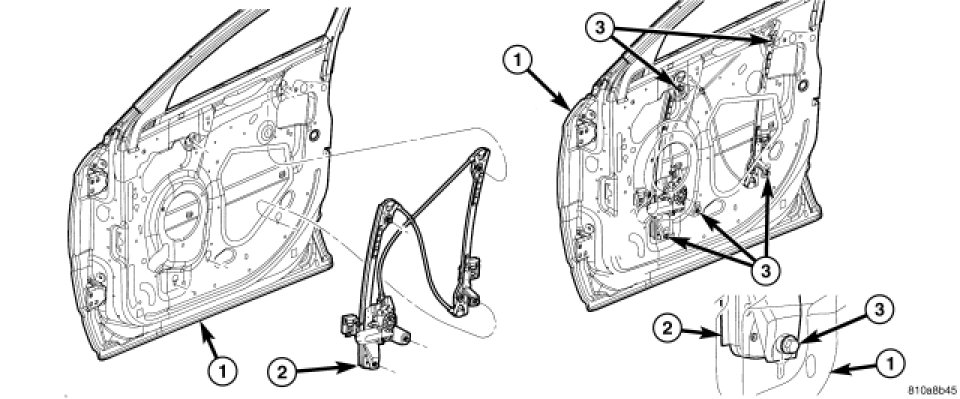

7. Remove screw heads on guide rails from key hole slots in inner door panel.

8. Loosen screws attaching motor/housing to inner door panel.

9. Remove regulator from inner door panel.

10. Extract rear guide rail through inner door panel rear access hole.

11. Extract front guide rail through front access hole.
