Sensor-Inlet Air Temperature 2.7L

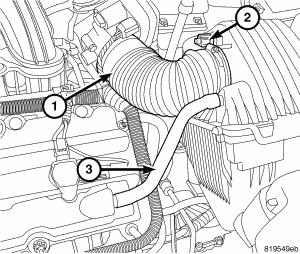

Fig 1: Identifying Air Box Cover
GC0060564Courtesy of CHRYSLER LLC
1 - Inlet Hose
2 - IAT sensor
3 - Fresh Air Hose
  1. Inlet Air Temperature (IAT) location.

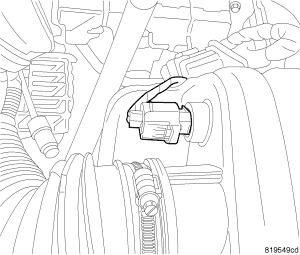

    Fig 2: View Of Inlet Air Temperature Sensor Electrical Connector
    GC0060563Courtesy of CHRYSLER LLC
  2. Disconnect negative battery cable.
  3. Unlock electrical connector.
  4. Disconnect electrical connector.
  5. Turn sensor 1/4 turn and pull to remove sensor.
  6. Remove sensor.
