Sensor-Engine Coolant Temperature: Removal: Removal-3.5L

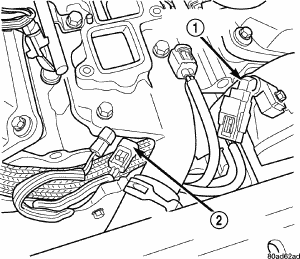

Fig 1: Identifying Engine Coolant Temperature Sensor - 3.5L

Courtesy of CHRYSLER LLC

1 - CAMSHAFT POSITION SENSOR

2 - ENGINE COOLANT TEMPERATURE SENSOR

1. Disconnect negative battery cable.
2. Partially drain cooling system. See STANDARD PROCEDURE .
3. With the engine cold, disconnect coolant sensor electrical connector.
4. Remove sensor (2).
