Description






DESCRIPTION

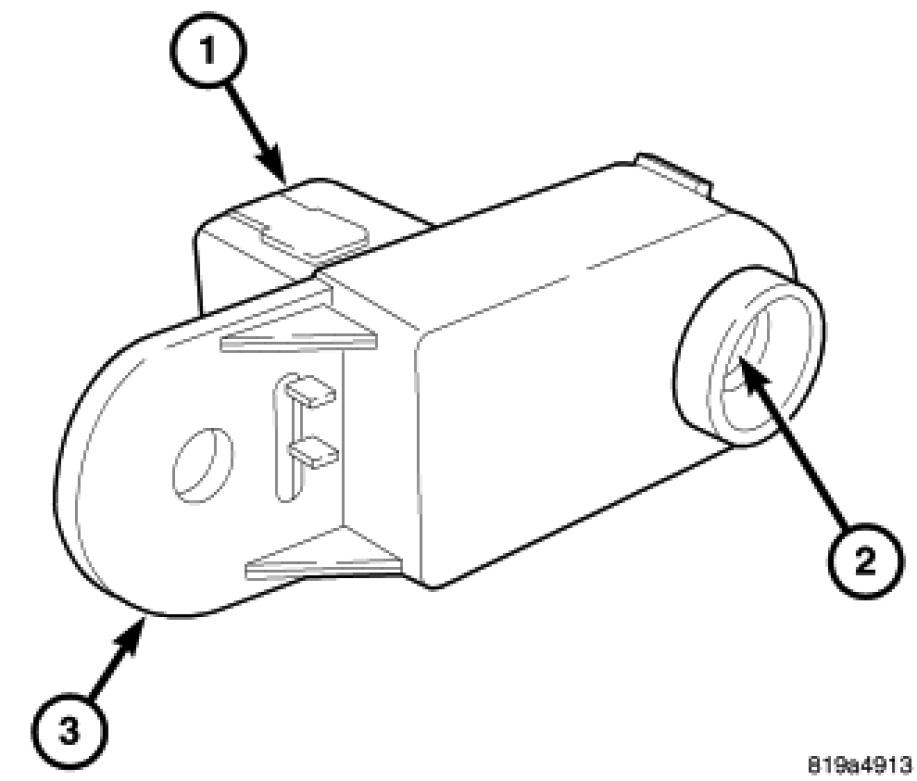

NOTE: Sedan model shown. Convertible model similar.

The infrared temperature sensor consists of an infrared transducer concealed behind a clear lens (2) located in a molded plastic housing with an integral wire connector receptacle (1) and mounting tab (3).

The infrared sensor is used only on models equipped with the automatic temperature control (ATC) heating-A/C system.
