Removal

Speed Control Swith Removal

The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.

WARNING: IF REMOVAL OF AIRBAG MODULE IS NECESSARY, REFER TO RESTRAINT SYSTEMS. Restraints and Safety Systems

Speed Control Switch:

1. Remove the negative battery cable.

2. Turn off ignition.

3. Remove air bag, refer to the Restraint systems. Restraints and Safety Systems

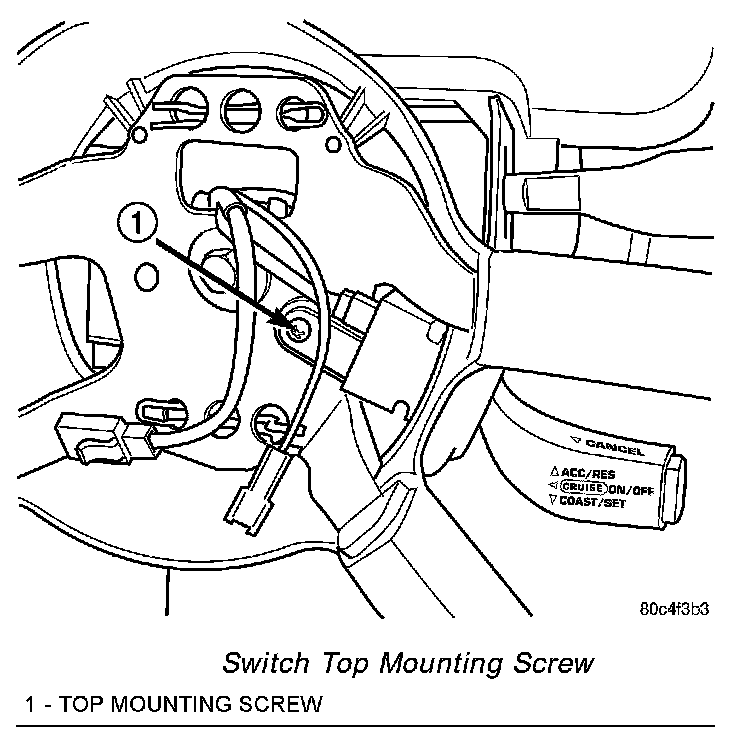

Switch Top Mounting Screw:

4. Remove the top mounting screw.

5. Rotate steering wheel so that the switch is in the 6 o'clock position. Remove 2 screws from the back side of the speed control switch.

6. Disconnect the electrical connector.

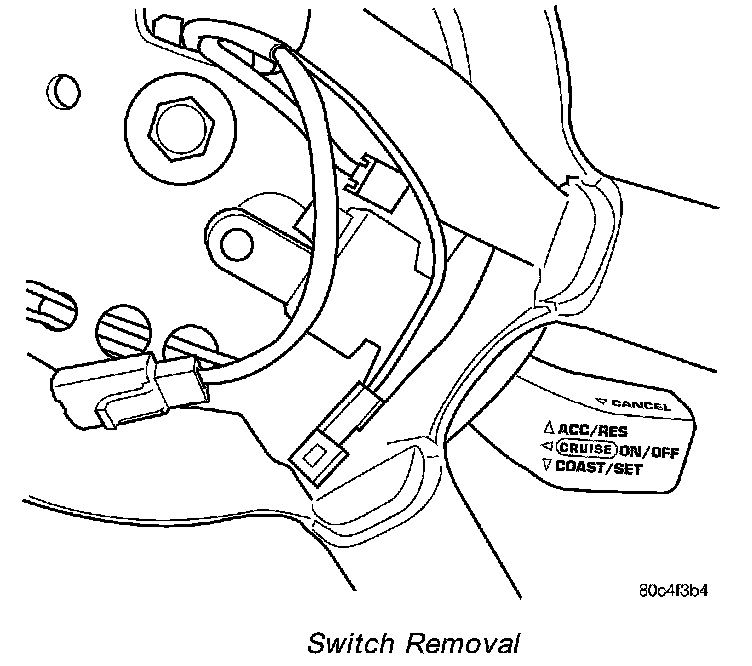

Switch Removal:

7. Remove switch.
