Alternator

Component ID: 121
Component : GENERATOR

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 CHARGE INDICATOR SIGNAL G329 20VT/OR
2 GEN OUTPUT SIGNAL K92 16BR

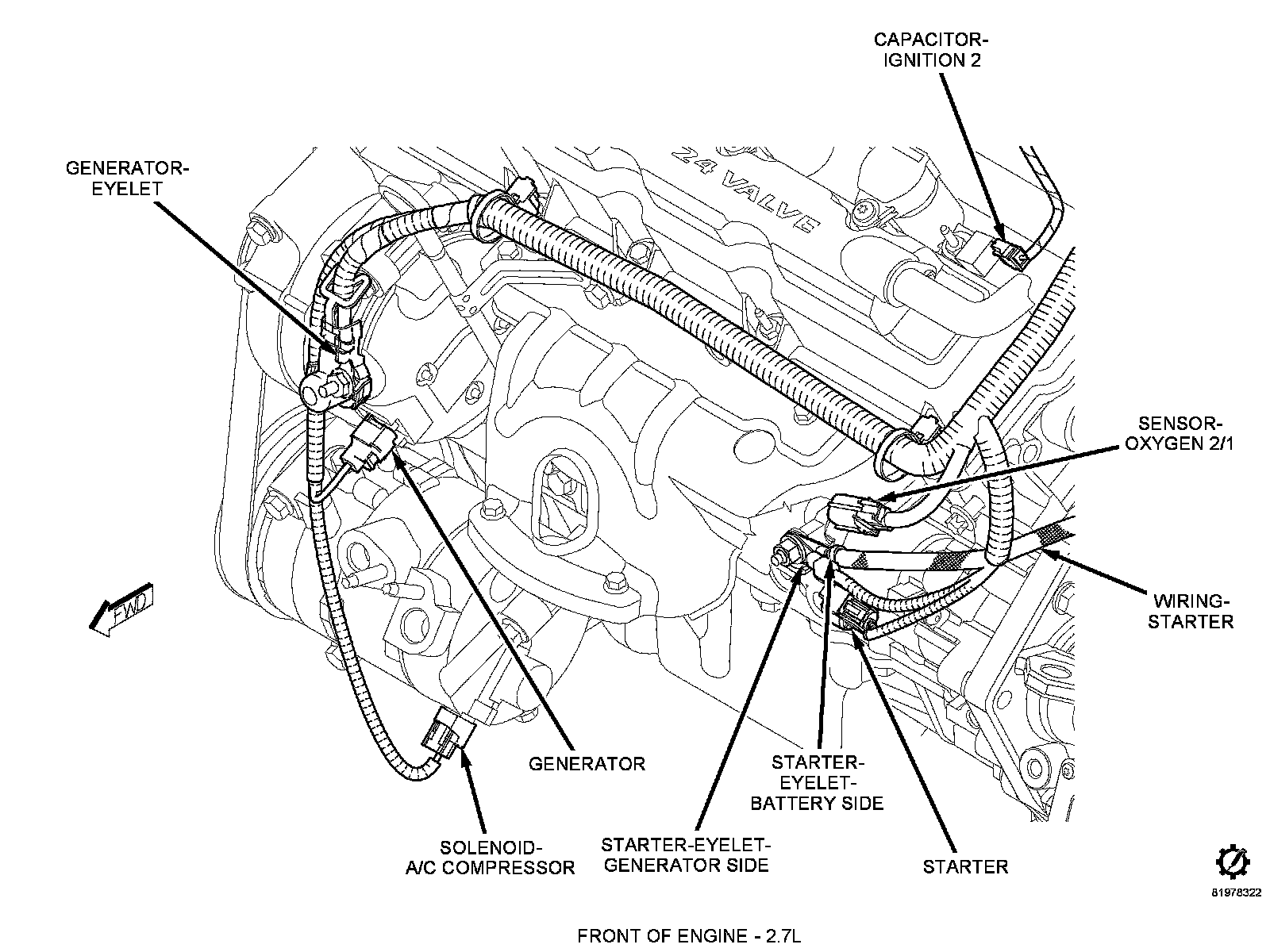

Component Location - 22




Component Location - 25




Component Location - 28

Fig. 28:

Component Location - 32

Fig. 32:

Connector:
Name : GENERATOR
Color :
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 GEN FIELD CONTROL K20 20BR/GY
2 GEN SENSE A804 20RD/GY

Component Location - 22




Component Location - 25




Component Location - 28

Fig. 28:

Component Location - 32

Fig. 32:

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 FUSED B(+) A801 4RD

Component Location - 22




Component Location - 25




Component Location - 28

Fig. 28:

Component Location - 32

Fig. 32:

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 FUSED B(+) A801 4RD

Component Location - 22




Component Location - 25




Component Location - 28

Fig. 28:

Component Location - 32

Fig. 32:
