Sensor-Side Impact-Left 2

Component ID: 369
Component : SENSOR-SIDE IMPACT-LEFT 2

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 2
Color :
# of pins : 2




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 2 GROUND R19 20LG/WT
2 LEFT SIDE IMPACT SENSOR 2 SIGNAL R17 20LG

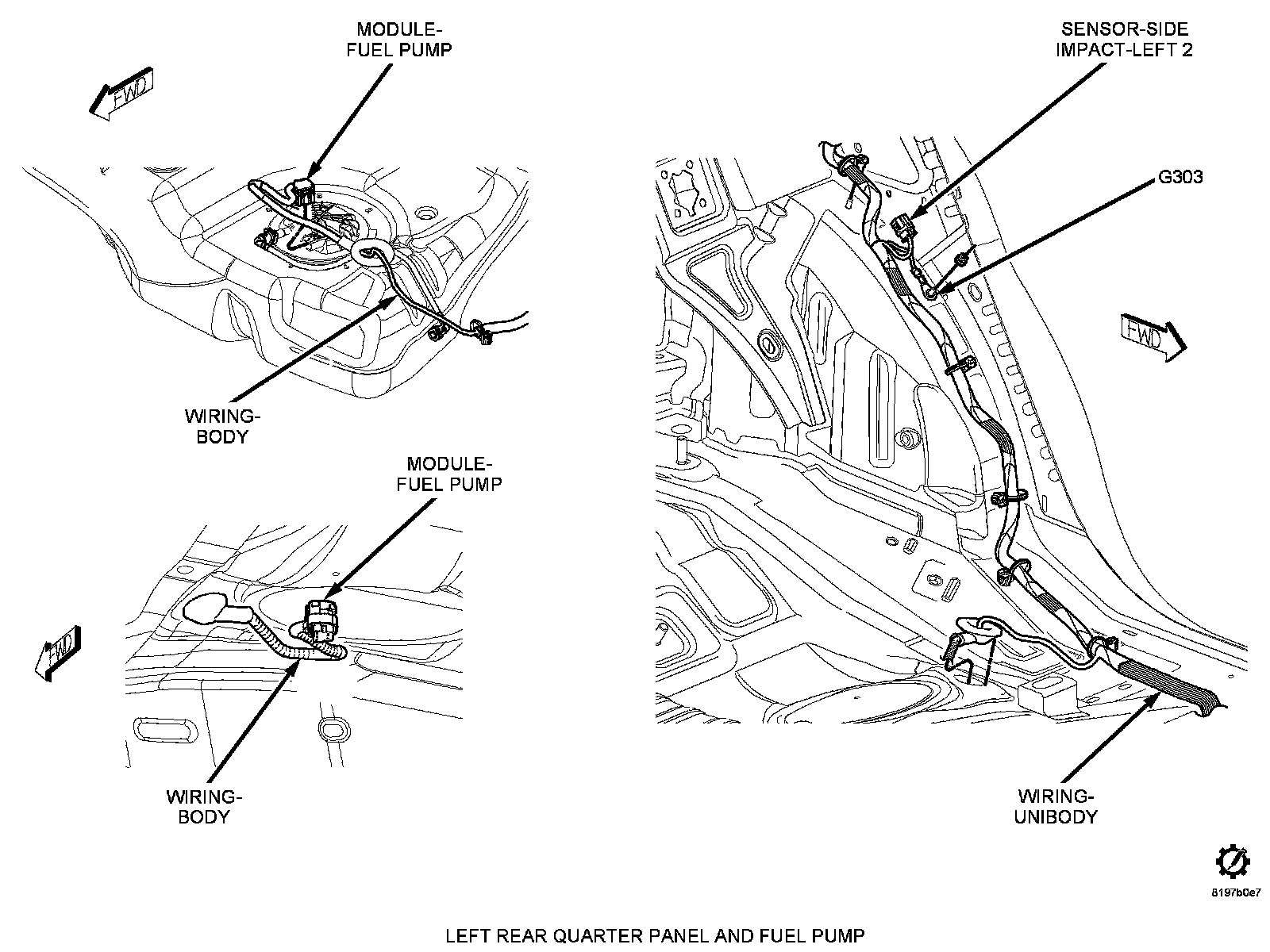

Component Location - 63
