Variable Induction Control Valve

Component ID: 386
Component : SOLENOID-MANIFOLD TUNING VALVE

Connector:
Name : SOLENOID-MANIFOLD TUNING VALVE
Color :
# of pins : 6
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 GROUND Z902 20BK
2 - -
3 MTV CONTROL K136 20BR/WT
4 SENSOR GROUND K900 20DB/LB
5 MTV SIGNAL K234 20DB/OR
6 5 VOLT SUPPLY F856 20PK/YL

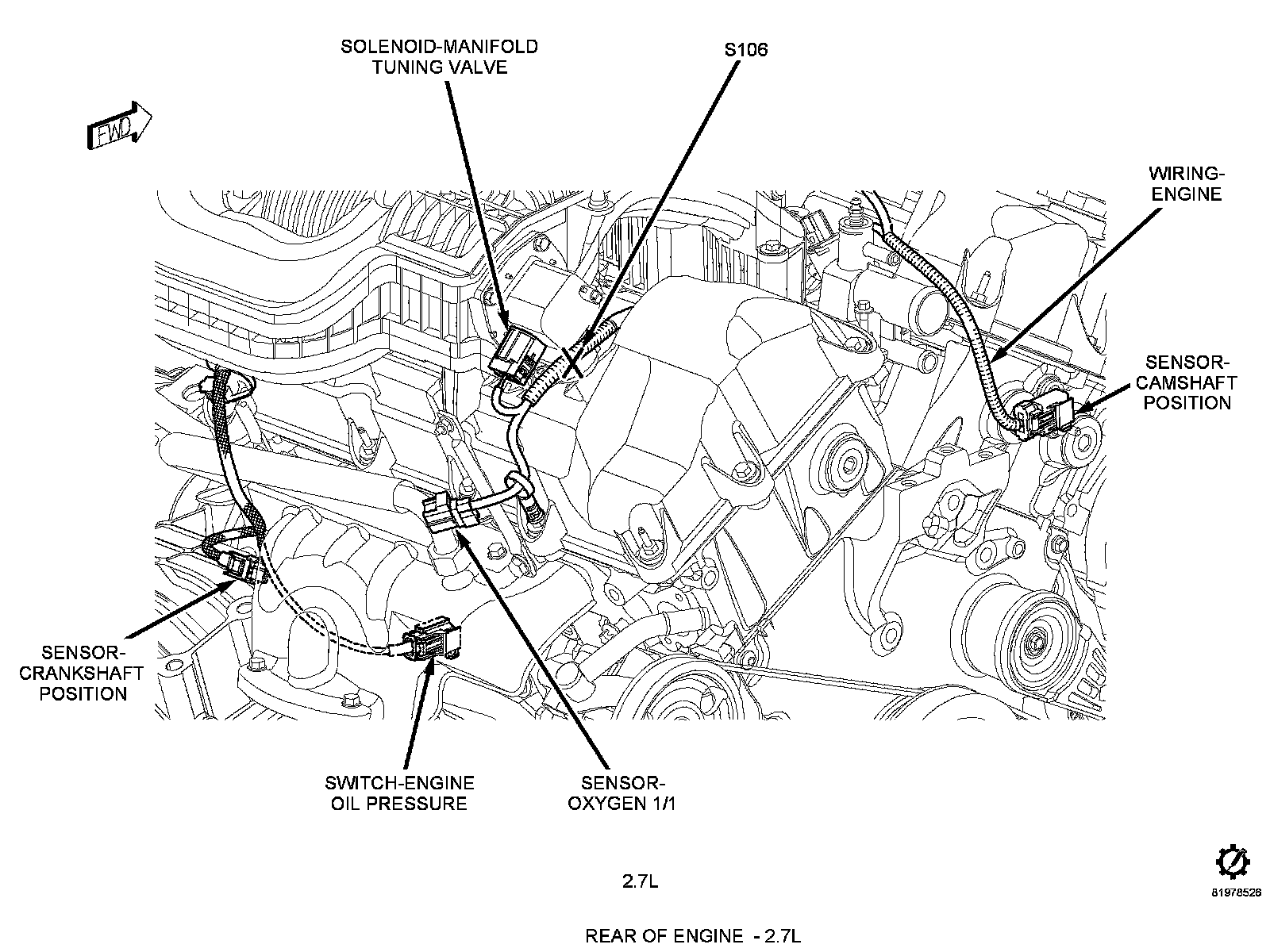

Component Location - 23

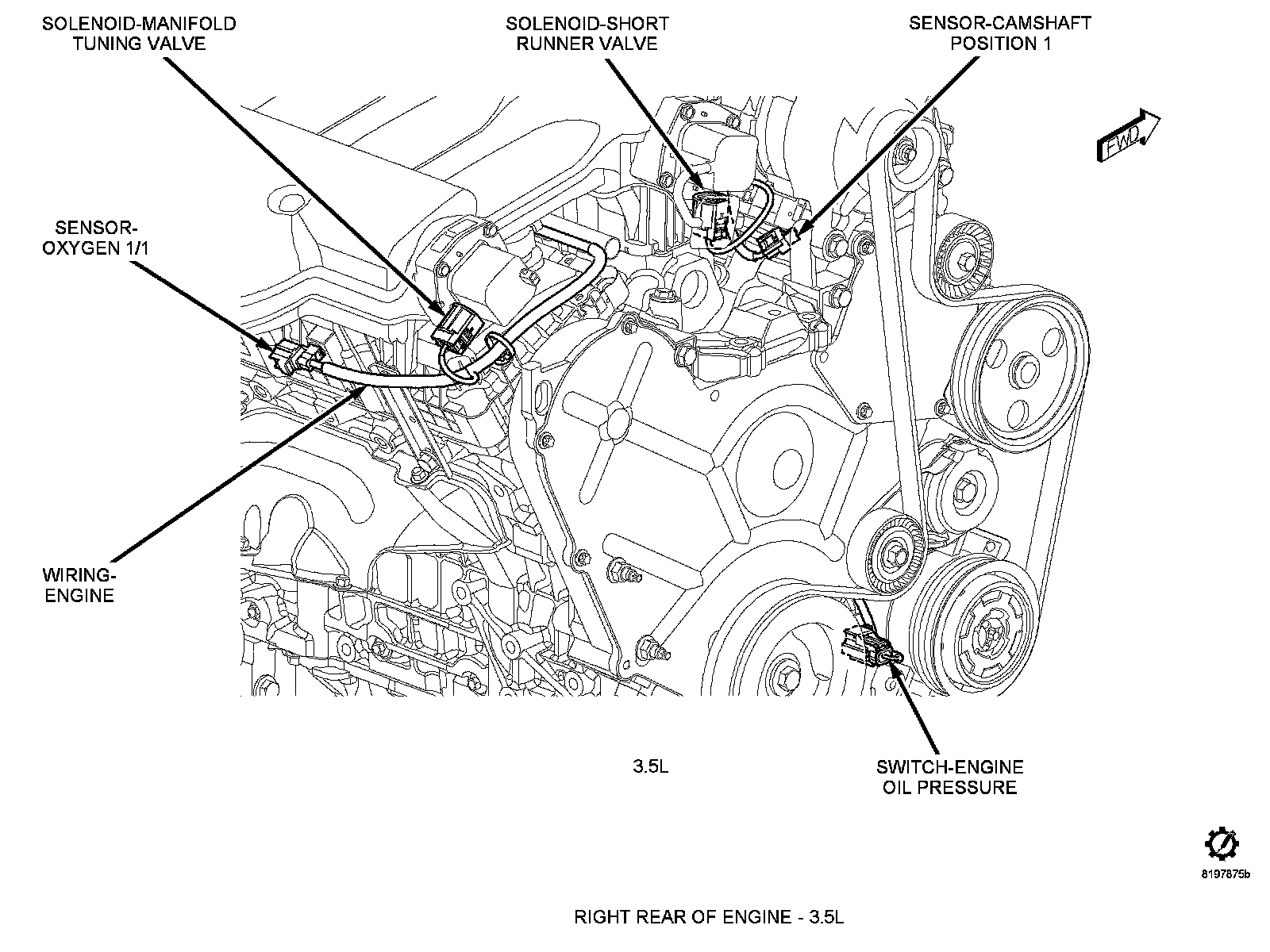

Component Location - 27
