Installation

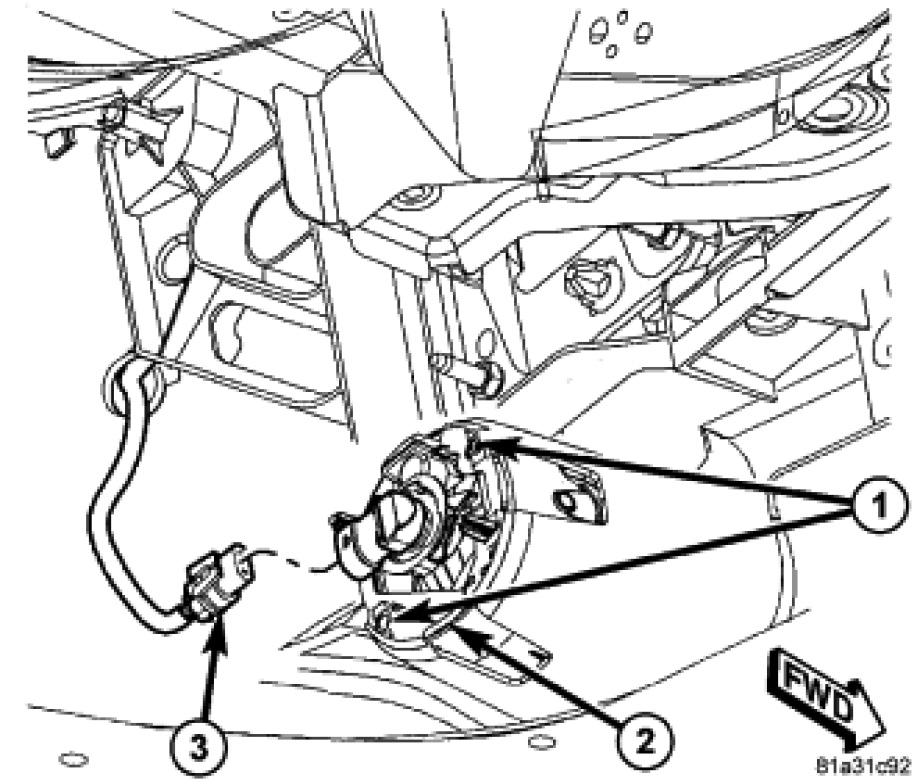

LAMP UNIT





1. Place fog lamp (2) into position.

2. Connect wire connector (3) to fog lamp bulb.

3. Install fog lamp (2) to fascia.

4. Install two screws (1) attaching fog lamp (2) to front bumper fascia.

5. Install the front lower fascia closeout panel.

6. Connect battery negative cable.
