Installation

3.5L





1. Install knock sensor. Tighten knock sensor to 20 Nm (15.2 in. lbs.) torque. Over or under tightening effects knock sensor performance, possibly causing improper spark control.

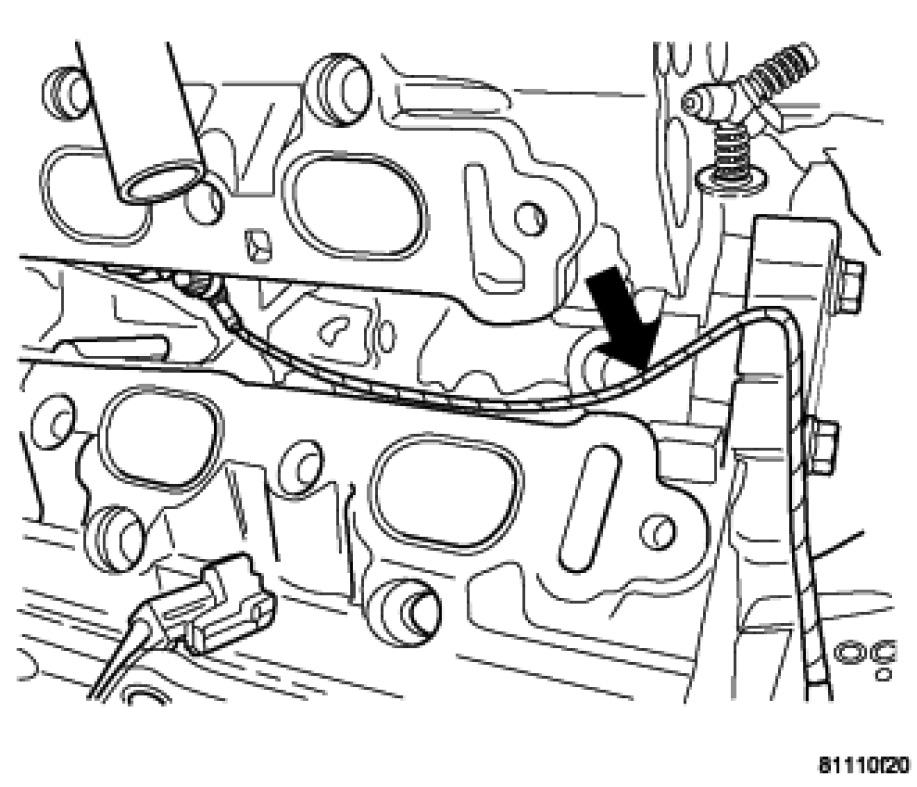

2. Route the knock sensor wire in the proper location .

3. Install the upper intake manifold.

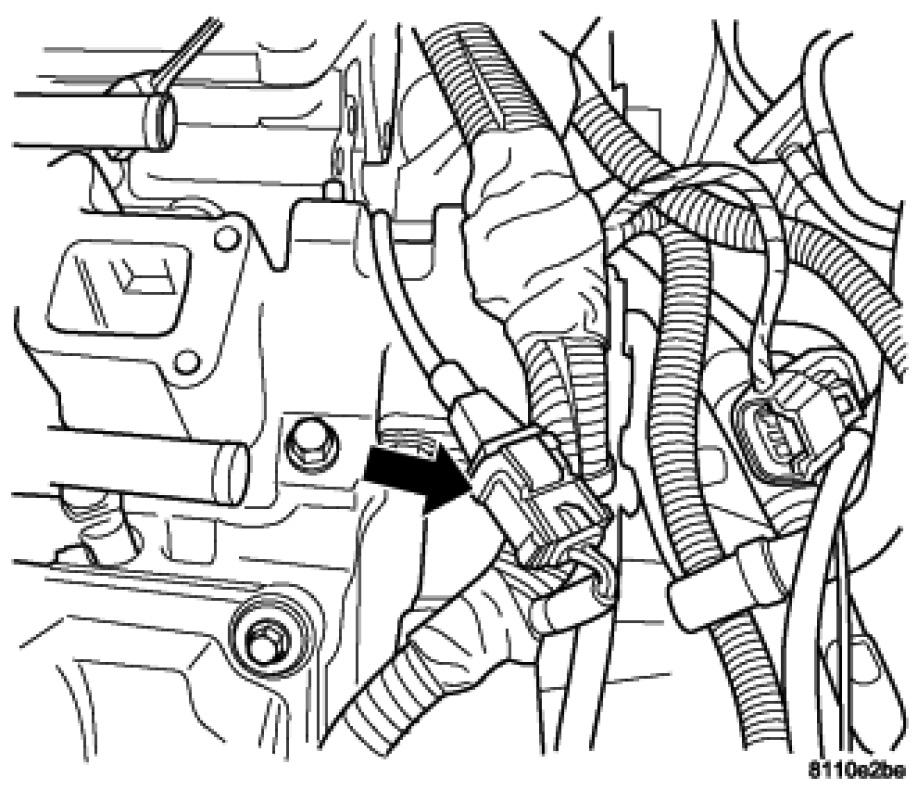

4. Connect the electrical connector .

5. Connect the negative battery cable.
