Installation

3.5L




1. Clean mounting surface.

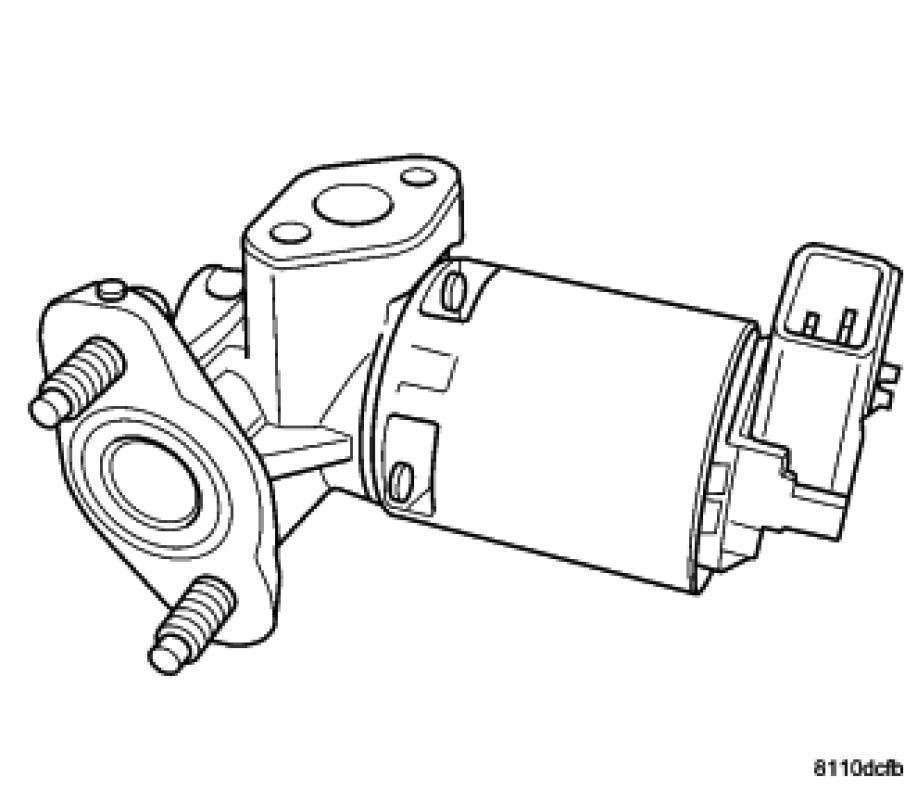

2. Install EGR valve and new gasket.

3. Install the EGR valve mounting bolts (1).

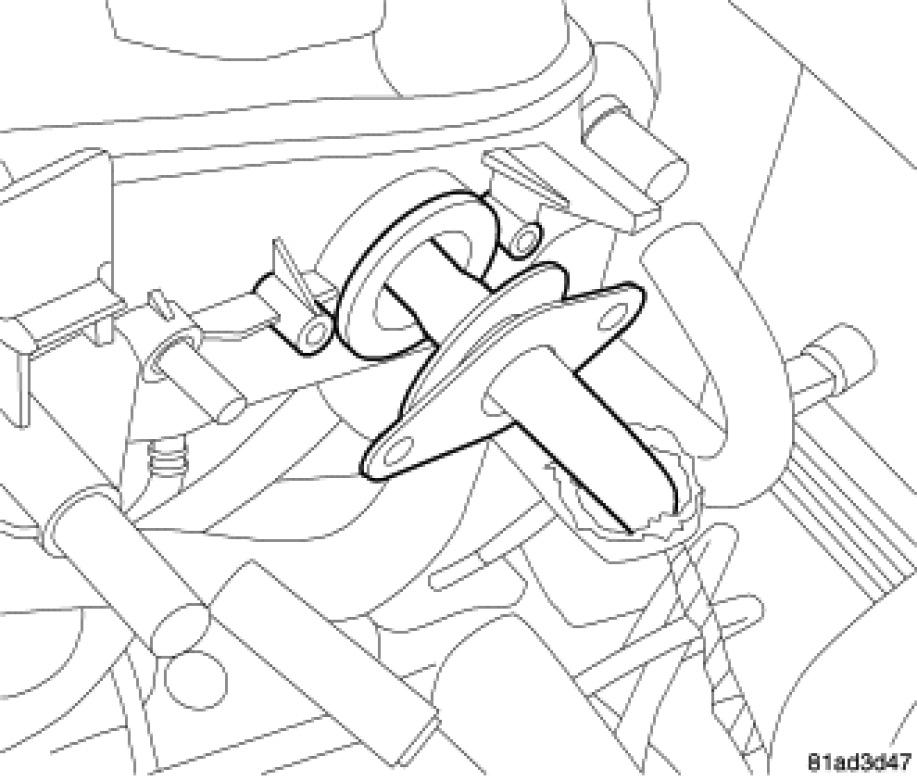

4. Inspect rubber silicone seals on intake manifold end of EGR tube.

5. Install upper tube into the intake manifold, being careful that the silicone rubber seals are correctly installed and undamaged.

6. Install new gasket between the EGR valve and upper tube and install bolts.




7. Tighten the upper tube to EGR valve bolts to 11 Nm (95 in. lbs.) torque.

8. Tighten EGR valve to cylinder head bolts to 31 Nm (275 in. lbs.) torque.

9. Connect the electrical connector to EGR valve and lock.

10. Connect negative battery cable.
