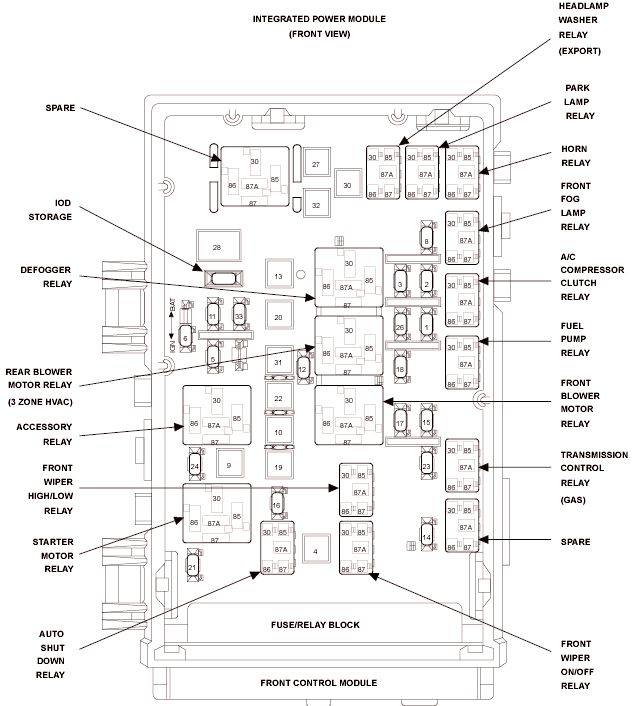

Defogger Relay Connector End View
DEFOGGER RELAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
30
INTERNAL
B(+)
85
FCM 31
DEFOGGER RELAY CONTROL
86
INTERNAL
B(+)
87
INTERNAL
DEFOGGER RELAY OUTPUT
87A
-
-
Courtesy of CHRYSLER CORP.
