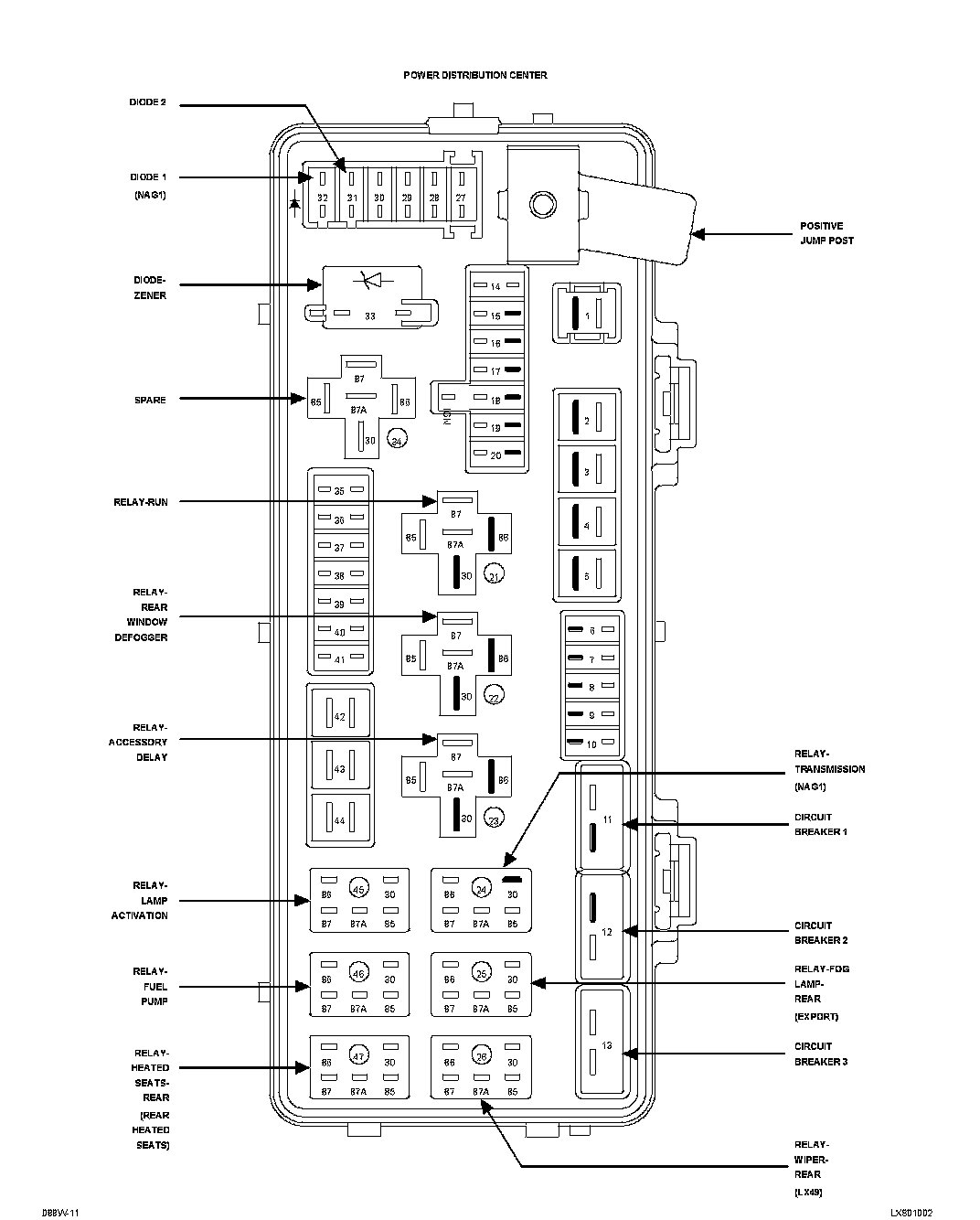

Diode 1

Component ID: 86
Component : DIODE 1

Connector:
Name : DIODE 1
Color :
# of pins : 2
Qualifier : (NAG1)

Pin Circuit Description
1 F950 16PK/LG RUN/START RELAY OUTPUT
2 F941 20PK/BR IGNITION RUN-START OUTPUT
