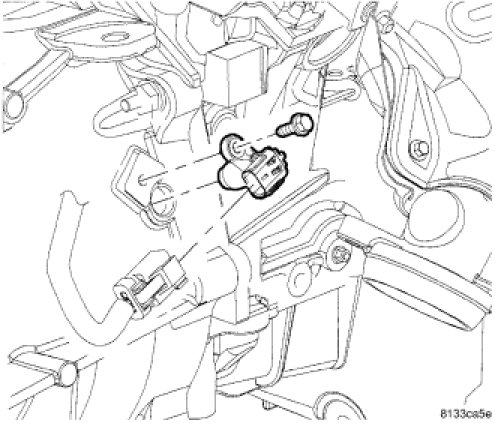

Crankshaft Position Sensor - Installation

2.7L





1. Install sensor.
2. Install mounting bolt and tighten to 12 Nm (106 in. lbs.).
3. Connect the electrical connector and lock.
4. Lower vehicle.
5. Connect negative battery cable.
