Installation

2.7L

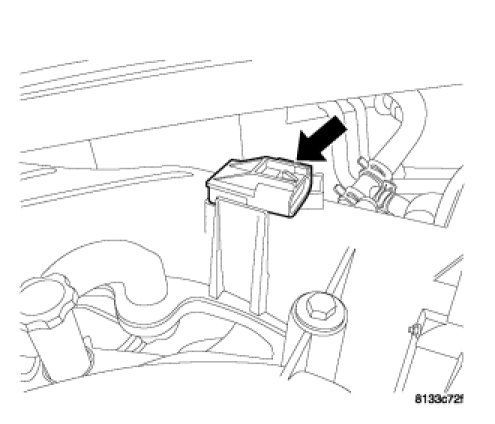

1. Clean MAP sensor mounting hole at intake manifold.

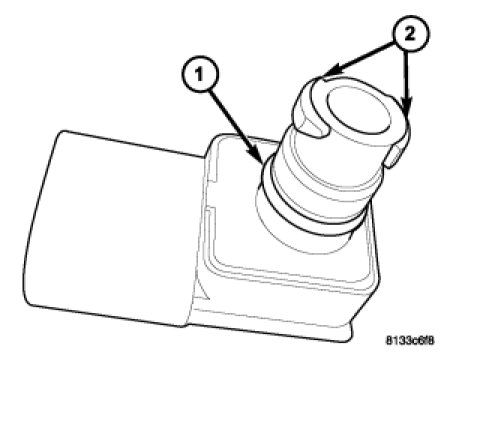

2. Check MAP sensor o-ring seal for cuts or tears.




3. Position sensor into intake manifold.

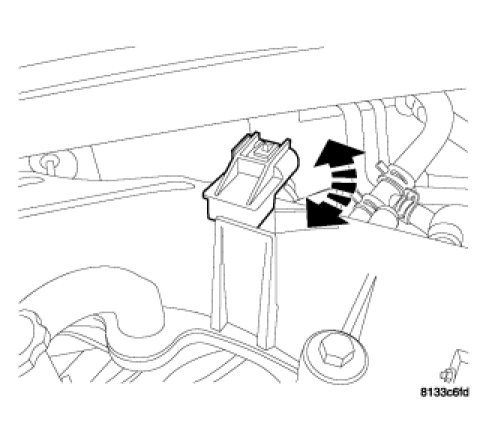

4. Rotate sensor 1/4 turn clockwise for installation.

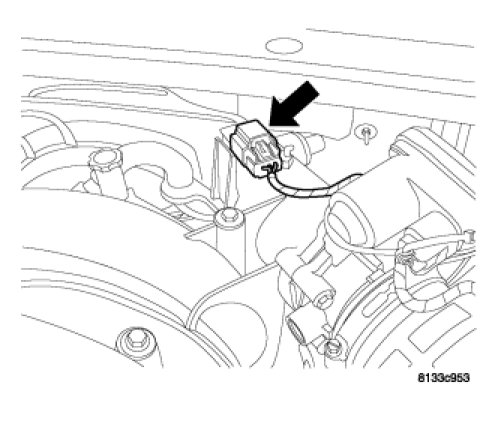

5. Connect electrical connector to sensor.
6. Lock electrical connector.
7. Connect negative battery cable.
