Installation

INSTALLATION





1. Make sure that the slider locks are positioned correctly in the downward position, sticking out of the side opposite the connector.
2. Position the rain sensor below the inside rear view mirror, over the bracket and gently push down to seat it on the bracket.

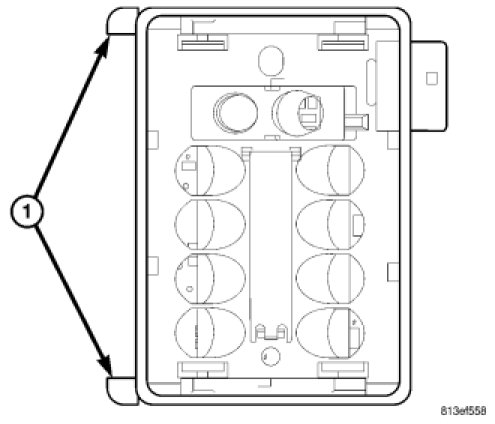

3. Push the slider cam locks (1) inward until they are flush with the side of the sensor case.
4. Connect the wire harness connector to the sensor.
5. Connect the battery negative cable.
