Installation







INSTALLATION





1. Inspect grommet and if installing new switch, use a new grommet. Position the switch into opening and firmly press into place.

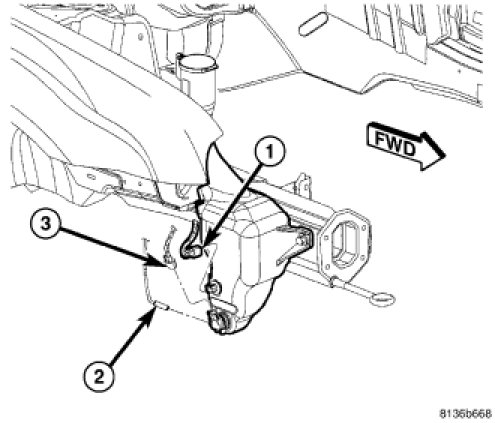

2. Install the washer reservoir Washer Reservoir - Installation.
3. Refill the reservoir with fluid drained previously.
4. Connect the battery negative cable.
