Alternator

Component ID: 119

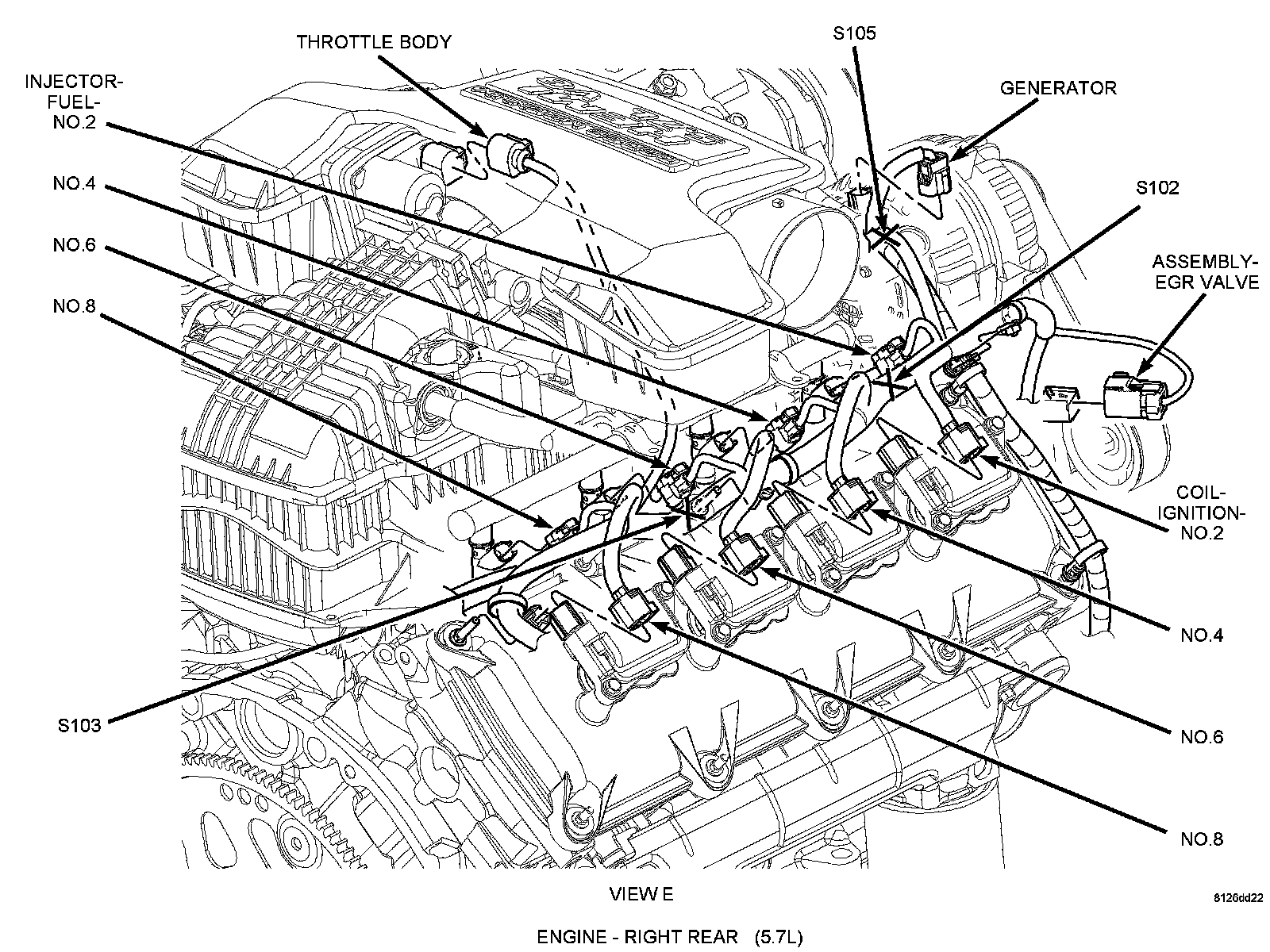

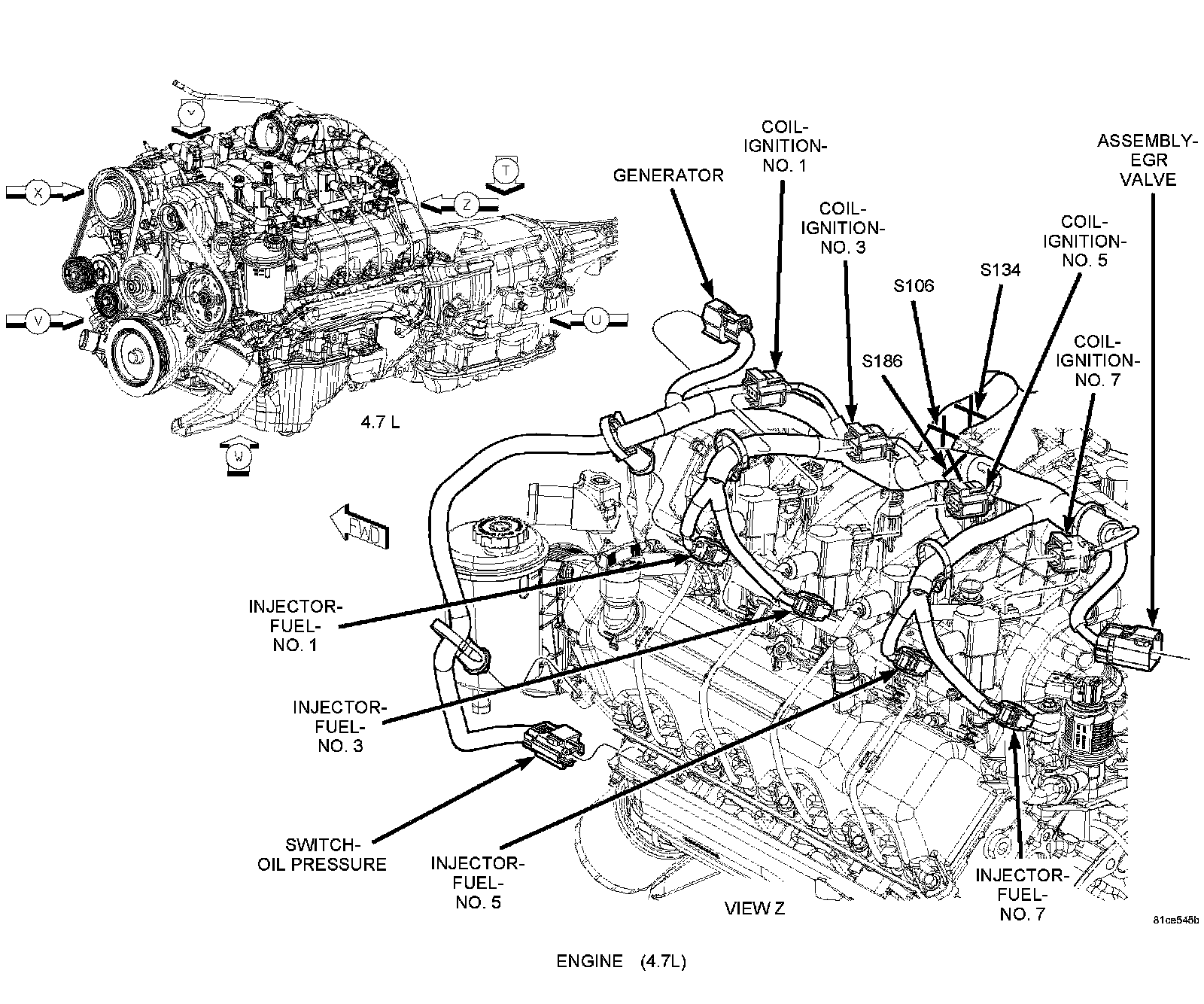

Component : GENERATOR

Connector:
Name : GENERATOR
Color :
# of pins : 2

Pin Circuit Description
1 K20 18BR/GY GEN FIELD CONTROL
2 A803 18GY GEN SENSE

Component Location - 12

Component Location - 22

Component Location - 23

Component Location - 7

Component Location - 15

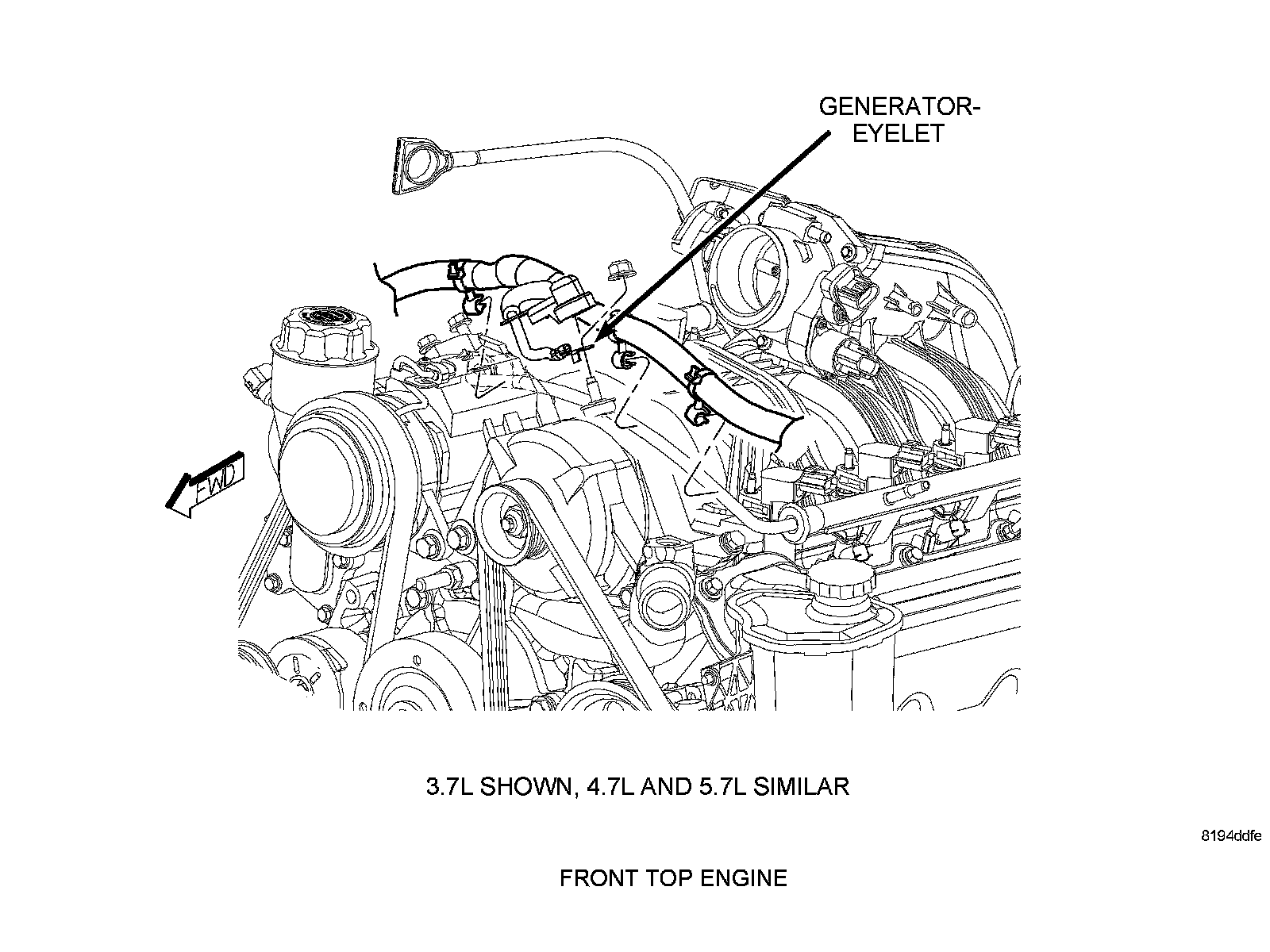

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1

Pin Circuit Description
1 A1 4RD B(+)

Component Location - 12

Component Location - 22

Component Location - 23

Component Location - 7

Component Location - 15
