Switch-Power Window-Left Rear

Component ID: 449
Component : SWITCH-POWER WINDOW-LEFT REAR

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color : GRAY
# of pins : 6




Pin Circuit Description
1 Q611 14DB/OR MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 Q211 14TN/DG LEFT REAR WINDOW DRIVER (DOWN)
3 Q111 14VT/TN LEFT REAR WINDOW DRIVER (UP)
4 Q411 14TN/WT MASTER WINDOW SWITCH LEFT REAR (UP)
5 - -
6 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT

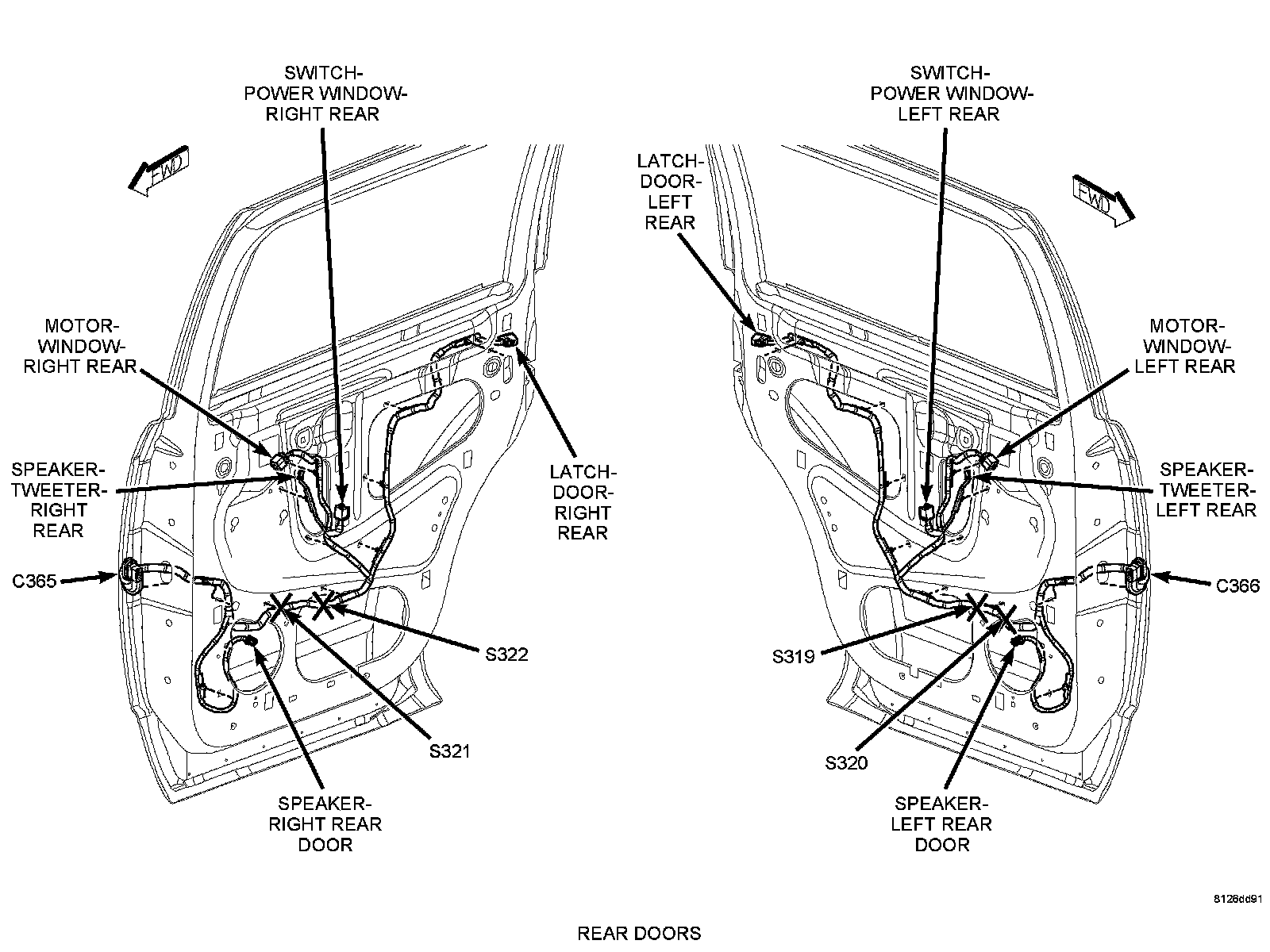

Component Location - 51
