Motor-Rear Window Wiper

Component ID: 191
Component : MOTOR-REAR WINDOW WIPER

Connector:
Name : MOTOR-REAR WINDOW WIPER
Color :
# of pins : 3




Pin Circuit Description
1 W13 16LG/BR REAR WIPER MOTOR CONTROL
2 W17 18BR/LG REAR WIPER PARK SWITCH SENSE
3 Z945 18BK GROUND

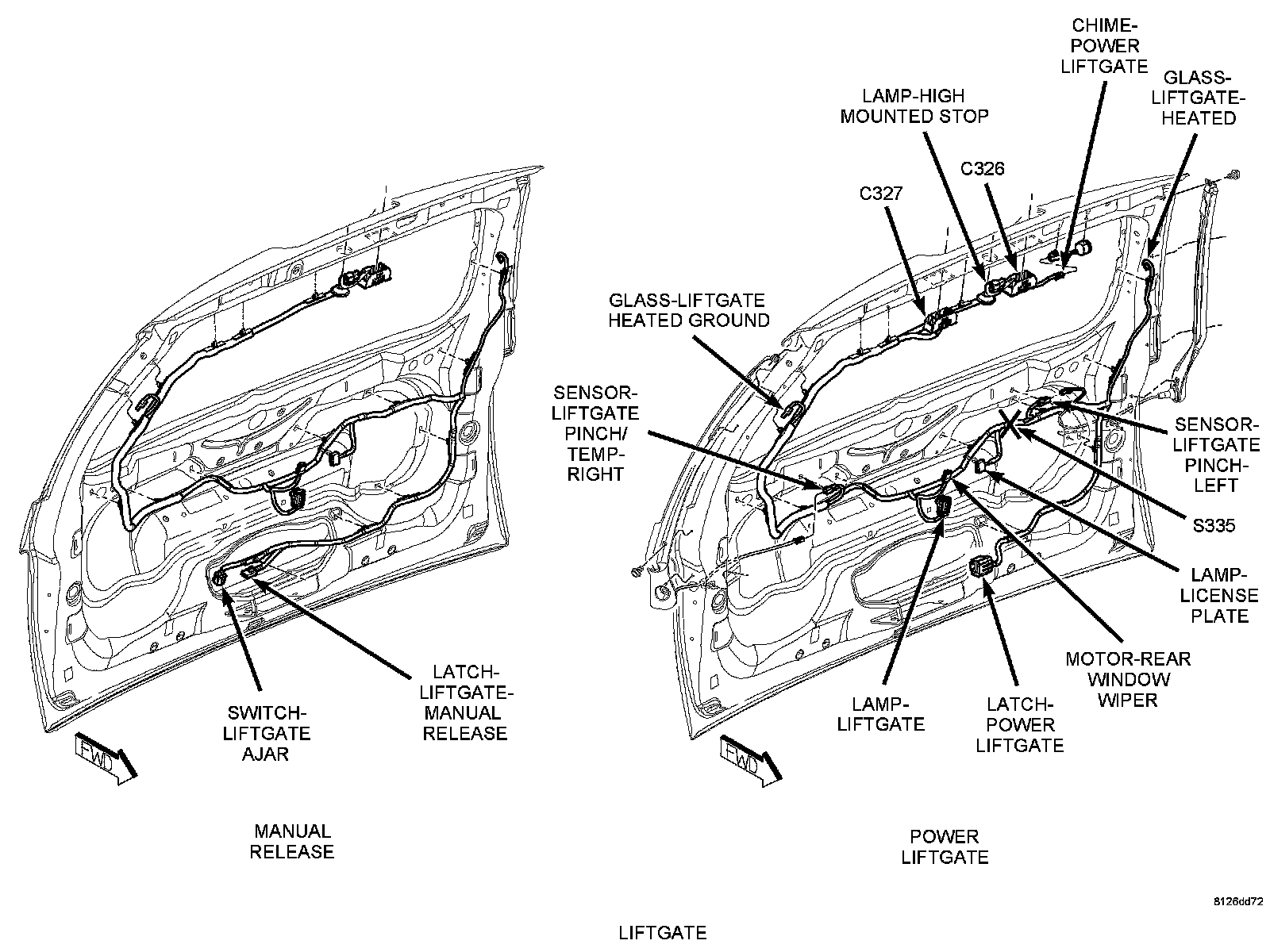

Component Location - 52
