Oil Pan, Engine







INSTALLATION - 4X2

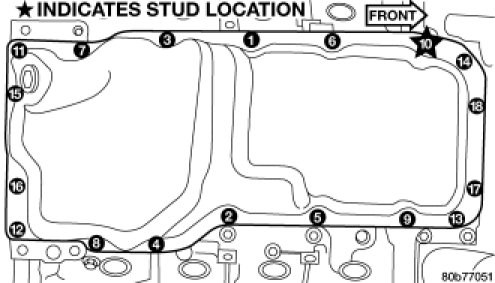

Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 15 Nm (11 ft. lbs.) in the sequence shown.
