Installation

INSTALLATION

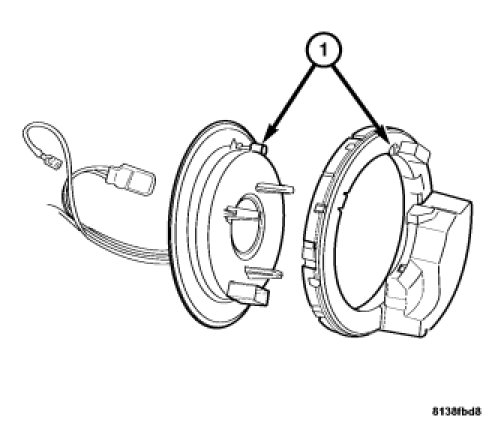

1. Locate and align the alignment points on the component housings (1).
2. Install the steering angle sensor to the clockspring.

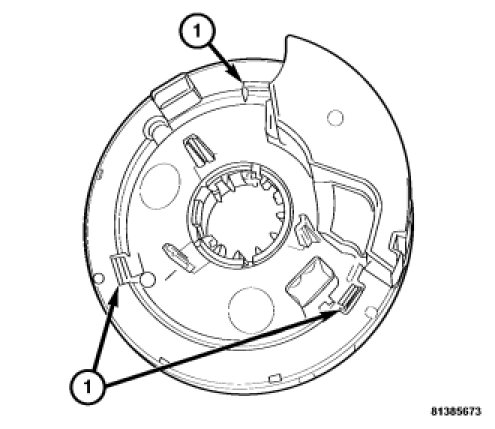

3. Snap the steering angle sensor retaining tabs (1) onto the clockspring.

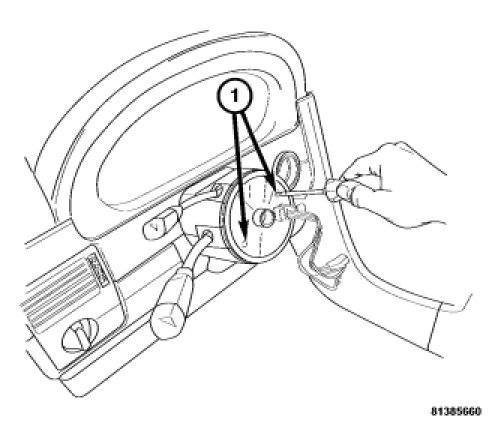

4. Install the clockspring onto the steering column. Installation.
